Using internet faxing operations
6
SU-502 6-13

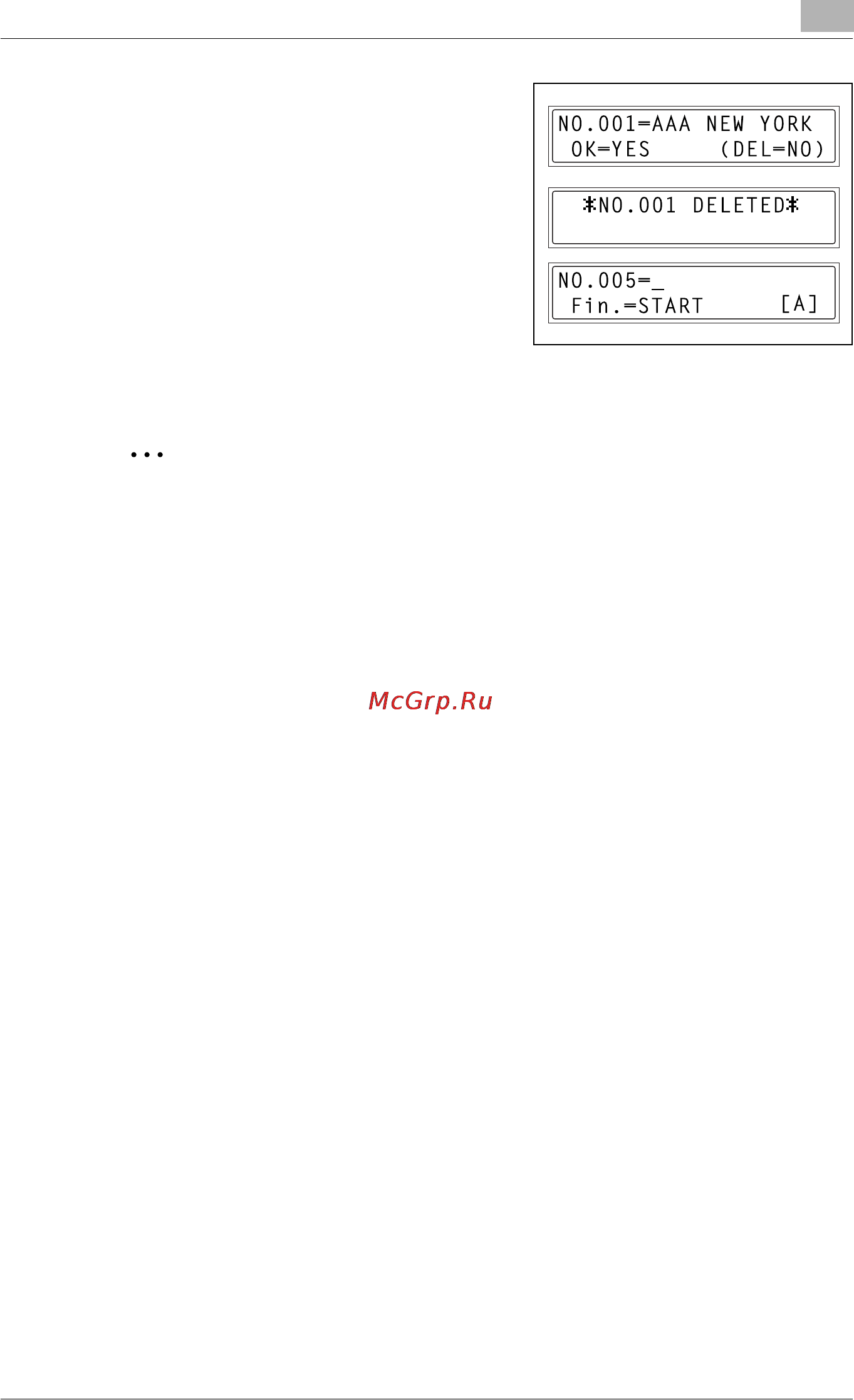

8 Press of the [Yes] key to display each
destinations specified in step 5.
– To delete the destination that is
displayed, press the [No/C] key.
– After all of the destinations have
been checked, the message
Fin.=START appears.
9 Press the [Start] key. Scanning
starts, and the scan data is sent to
the specified destinations.
2
Note
If an incorrect destination has been specified, press the [No/C] key to de-
lete the current selection. (You can only delete a destination in this way if
it is done before the [Yes] key has been pressed to confirm the recipient.)
When the destinations specified for a broadcast transmission contain
both e-mail addresses and fax numbers, the fax is sent to the e-mail ad-
dresses before it is sent to the fax numbers.
