Kyocera FS-1000 Plus [100/163] 5 removing the thermal cutout

FS-1000/1000+

5-27

(5) Removing the thermal cutout

CAUTION Do not bend the terminals of the thermal cutout.

1. Remove and split the fuser unit (See page 5-20).

2. Remove the heater lamp (See page 5-23).

3. Remove the heat roller (See page 5-24).

4. Remove the two screws 1.

5. Turn the thermal cutout 2 counterclockwise slightly, then lift the thermal cutout 2.

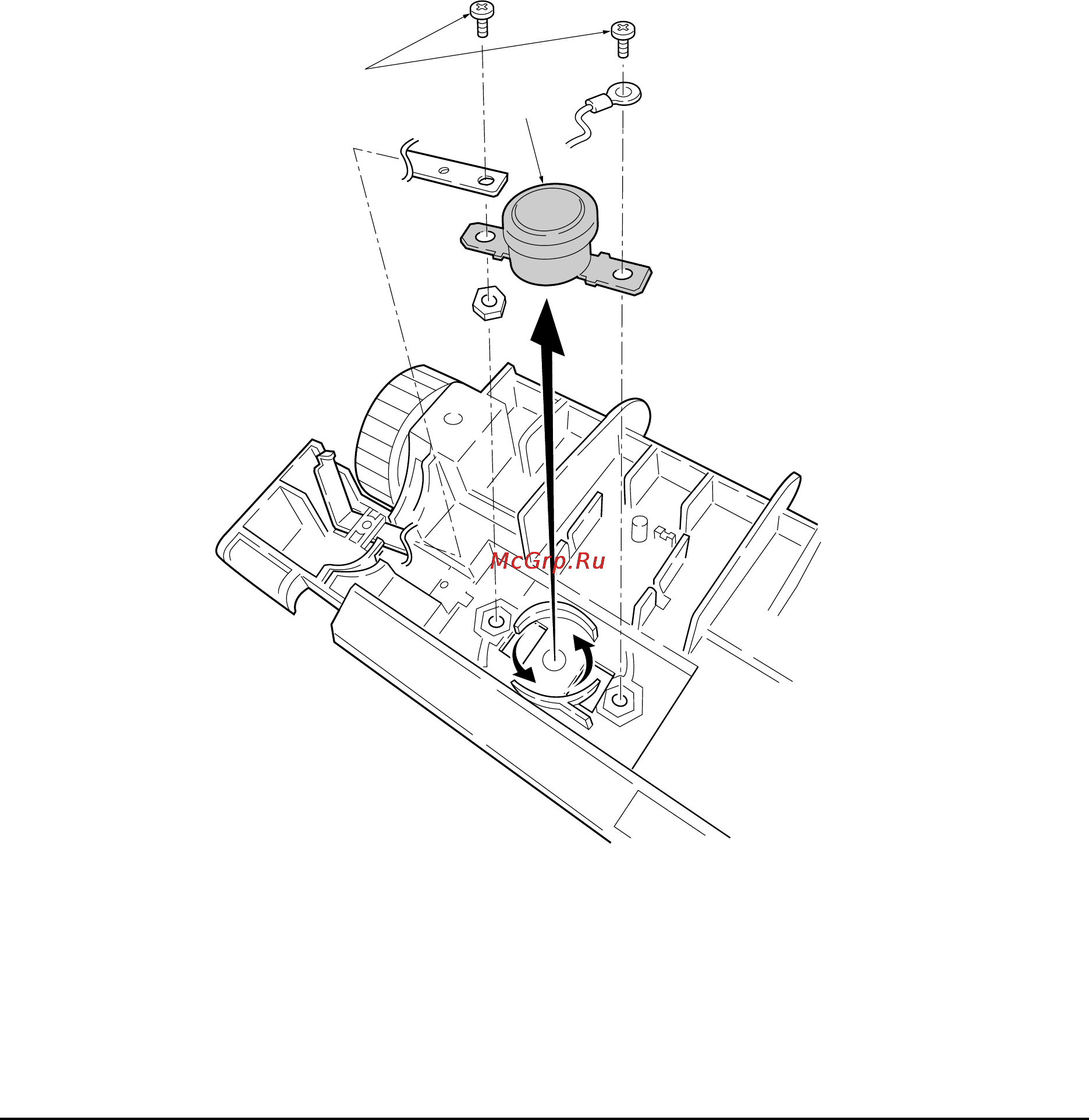

Figure 5-2-24 Removing the thermal cutout
