Kyocera FS-1000 Plus [118/163] Fs 1000 1000

6-13

FS-1000/1000+

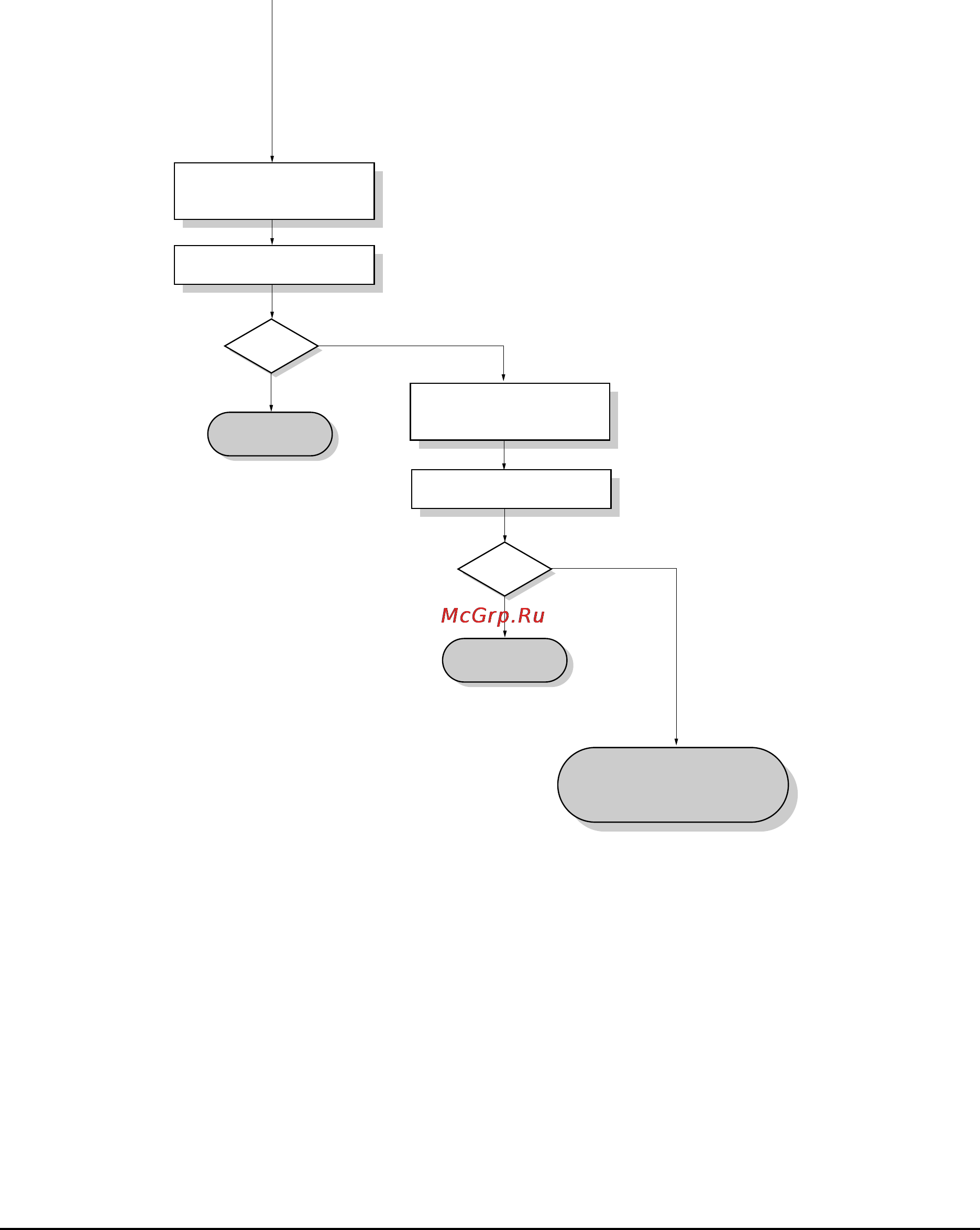

Turn power switch on.

Replace harness (S02516)

between engine board and

main board.

Replace engine board

(KP-781). See page 5-11.

OK?

Yes

Turn power switch on.

OK?

End.

Continued

from previous page.

Replace main board

(KP-780). See page 5-12.
