Kyocera FS-1000 Plus [78/163] 2 2 removing the principal outer covers

FS-1000/1000+

5-5

5-2-2 Removing the principal outer covers

(1) Removing the top cover/face-down output tray

1. Open the top cover 1.

2. Remove two screws 2.

3. Remove the top cover/face-down output tray 3.

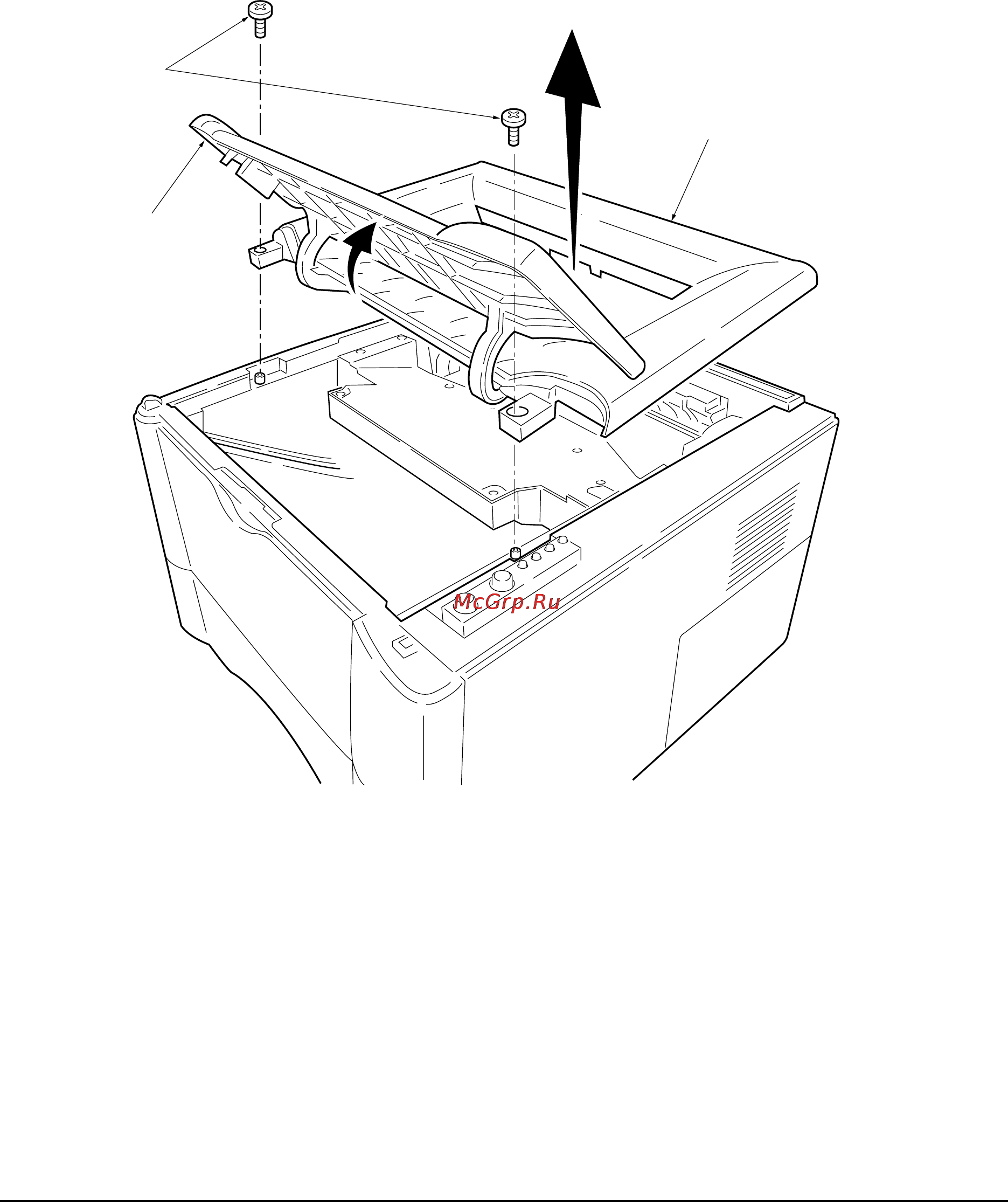

Figure 5-2-2 Removing the top cover/face-down output tray
