Kyocera FS-1000 Plus [40/163] 3 toner container replacement

3-5

FS-1000/1000+

(3) Toner container replacement

To replace the toner container, open the top cover. Pull lock lever #1 1 to the release [UNLOCK]

position, then pull lock lever #2 2 to the release (right) position.

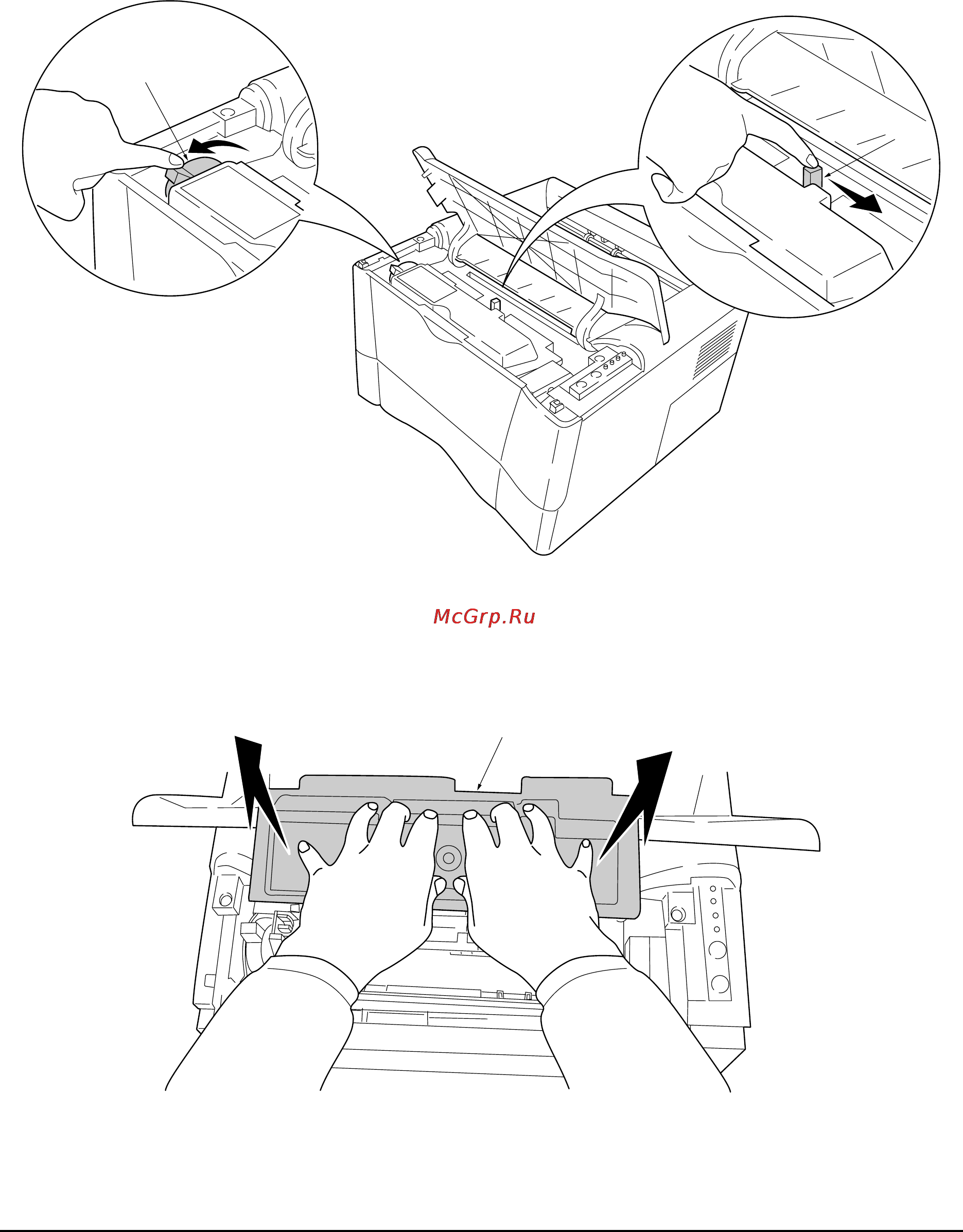

Figure 3-1-1 Releasing Lock lever #1 and #2

Gently remove the old toner container 3.

Figure 3-1-2 Removing the old toner container
