6-5
FS-1000/1000+
Indicator
Remote Operation Panel

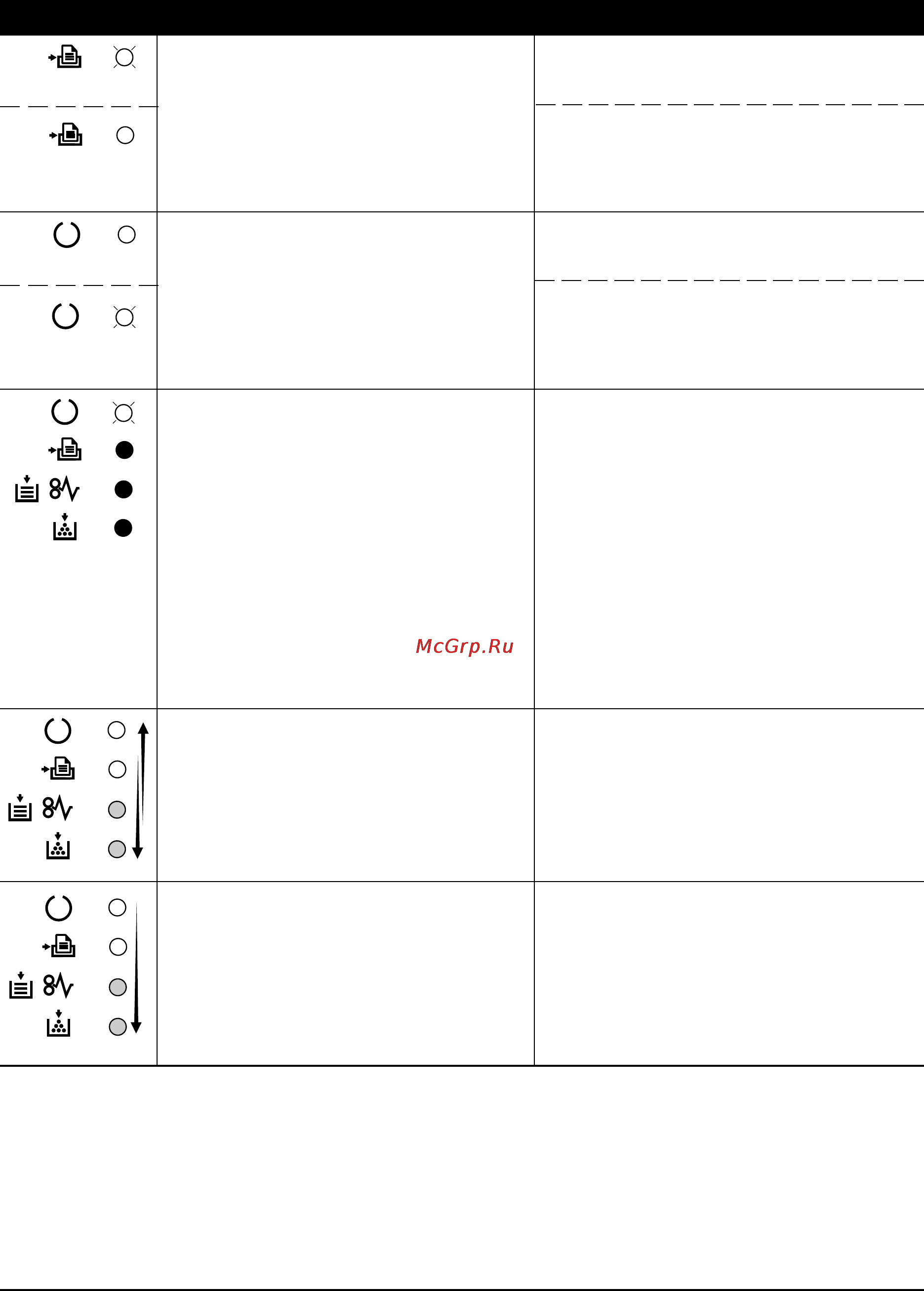

display Description
The printer is receiving data.
The printer is processing data, or the
printer is waiting for a code or command
signalling that the job is finished.
The printer is ready to print.
The printer is off-line. The printer stores
but does not print received data.
The printer is in sleep mode. The On line
indicator flashes at 5 second intervals and
all other indicators go off. The printer
wakes from Sleep mode whenever a key
on the operator panel is pressed, the cover
is opened or closed, or data is received.
The printer then warms up and goes on-
line. (By using the Remote Operation
Panel, setting the amount of time before
the printer enters sleep mode.)
Data inside the printer is being canceled.
The indicators light in sequence form the
top, then go off in sequence from the
bottom. This process is repeated twice.
The printer is warming up and is not
ready to print. The indicators light in
sequence twice from top to bottom.
Processing
Ready
Sleeping
Cancelling data
Please wait
Normal messages
