4-28
FS-1000/1000+
Interlock switch

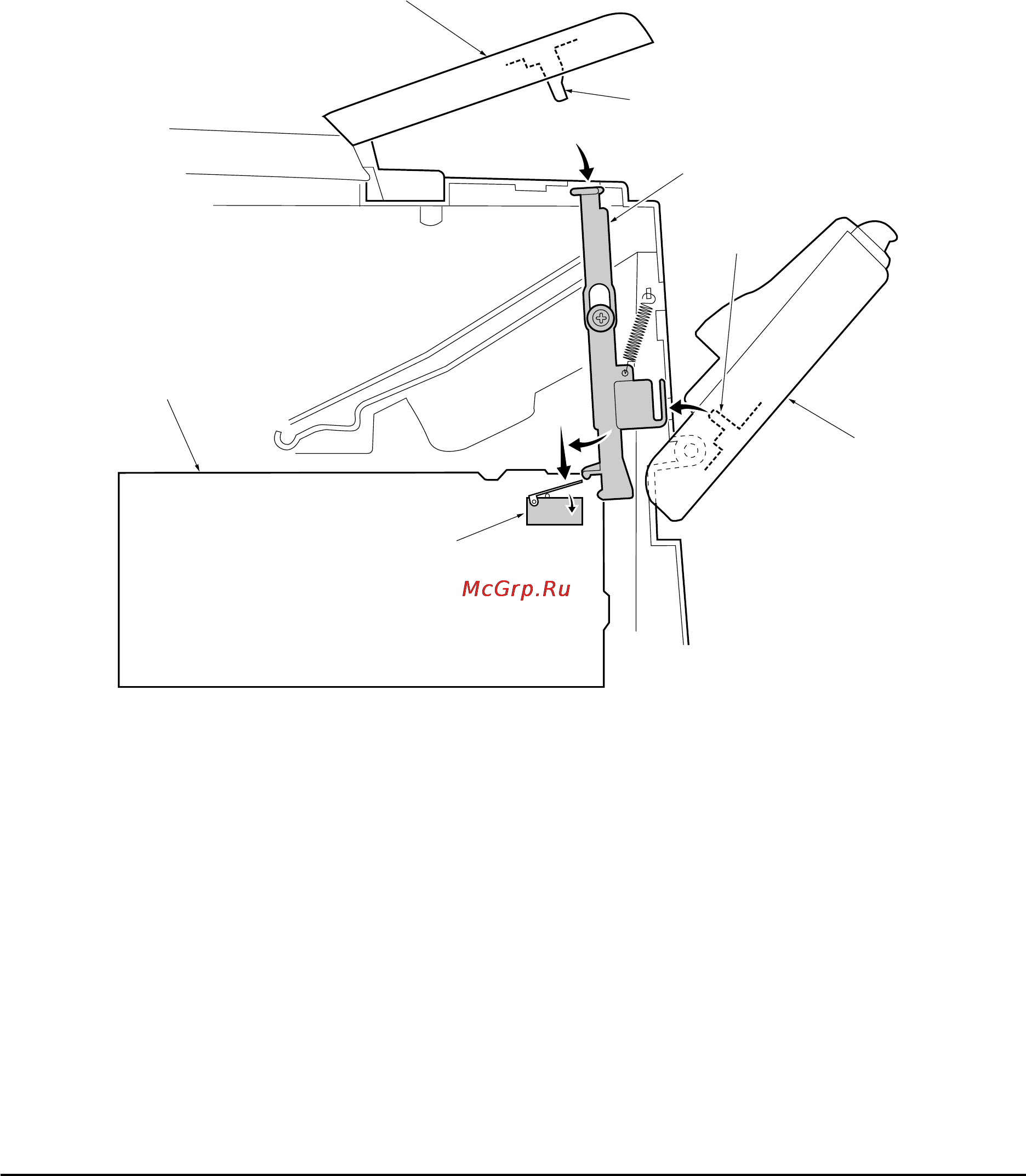

The interlock switch is located on the high voltage board and opened and closed in conjunction
with the front cover or the top cover via the interlock lever. This switch connects and disconnects
the +24 V DC power supply line. If the front cover or the top cover is open, the interlock switch is
open, and the +24 V DC to the high voltage output circuit, bias board, engine board, and the power
supply board is disconnected, deactivating the high voltage output, laser output, main motor output
for safety.
Front cover
High voltage board
Interlock switch
Interlock lever
Projection
Projection
Top cover
Machine left side view
Figure 4-3-10 Interlock switch
