(2) Downloading controller firmware data
To download controller firmware data, use Prescribe UPGR command as follows.
CAUTION Downloading controller firmware takes several minutes. Do not turn power off
during downloading.
Perform in sequence:
Turn printer power on. Make sure the printer is ready.
At the DOS prompt, send the following command to the printer:
echo !R! UPGR “SYS”;EXIT;>prn
DOS COPY (/b) the data from the host computer to the printer.
Confirm that downloading was finished normally by the LED indicator. (See the table below.)
Turn power off.
Turn power on again. Check the printer gets ready. If the display shows an error, see to the
table below.
Confirm the status page shows the new firmware version (See Service information on the status
page on page B-4). If downloading fails, the printer indicates an error display using the LED
indicators. To identify error, refer to the table which follows.

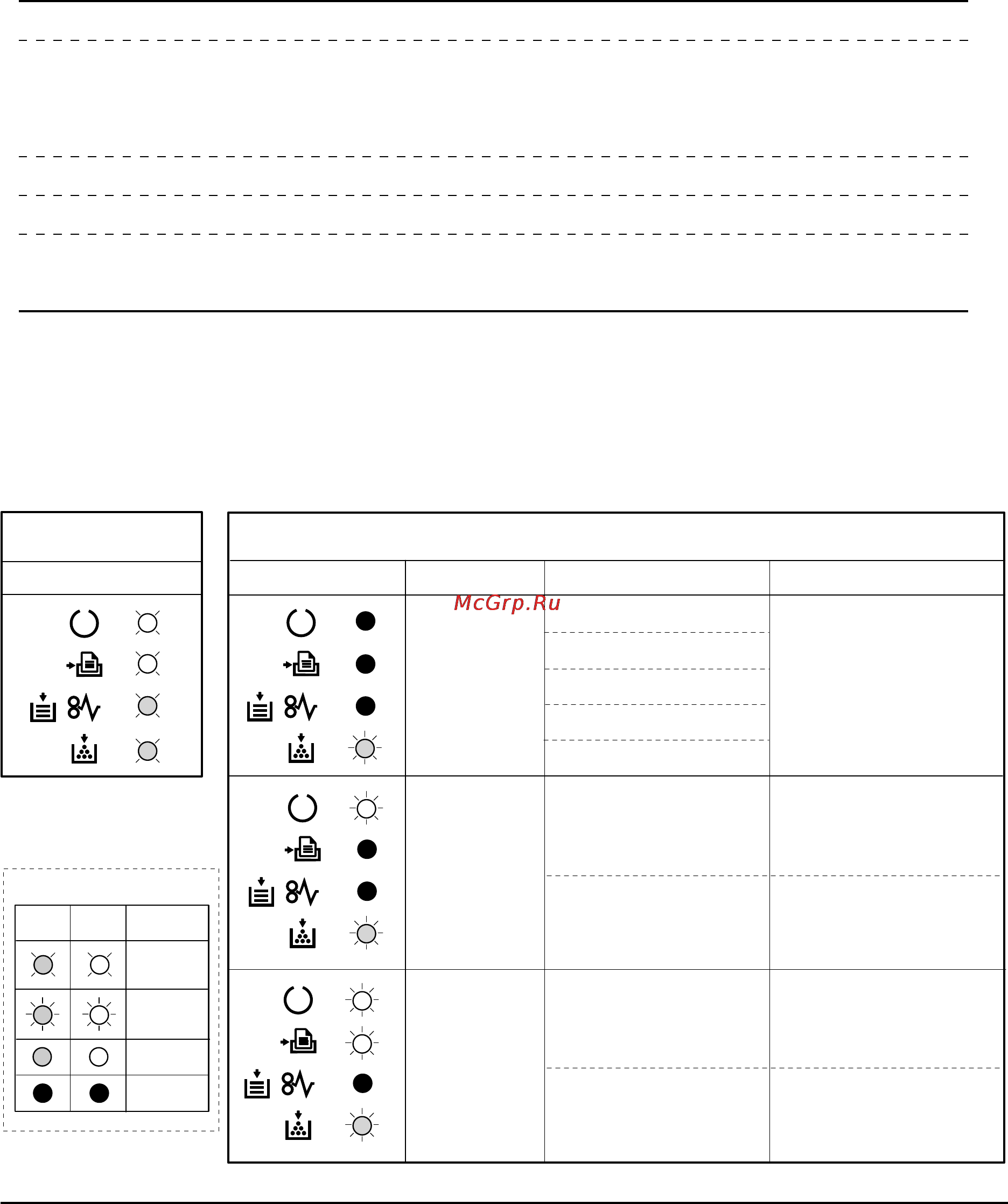

Cause
Corrective action
DescriptionLED indicatorsLED indicators
Download finished
normally
Convention
Download errors
Slow
flashing
Fast
flashing
Lit
Off
Red
Green
Meaning
Download
data error
Deficit of a file header
Deficit of a data header
File checksum error
File header version error
Data header version error
System
download error
Download
receiving error
Replace parallel cable.
Improper connection of
parallel cable between
PC and printer
Check the contact between
PC and printer’s interface
connector.
Confirm whether the
firmware conforms to this
printer.
Replace the system DIMM
board.
Defective system DIMM
board
Defective parallel cable
Incompatibility of firmware
and system DIMM board
Obtain normal firmware.
