Kyocera FS-1000 Plus [72/163] 5 high voltage board

4-27

FS-1000/1000+

(5) High voltage board

The high voltage board contains the high voltage output circuit, interlock switch circuit as well as

providing a liaison connection with the power supply board, bias board, and the engine board.

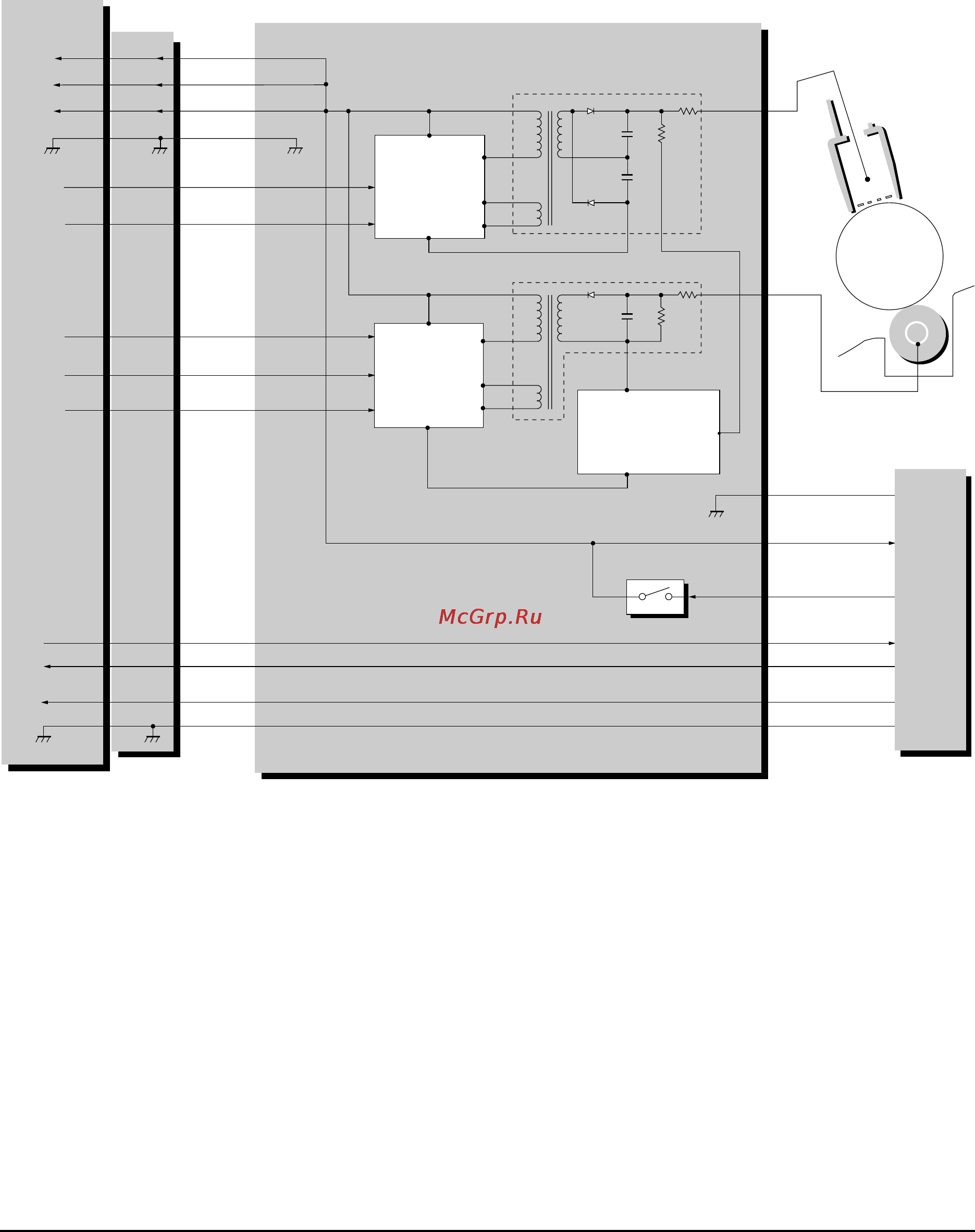

Figure 4-3-9 High voltage board circuit block diagram

PGND

Control

and

driver

circuit

Transfer bias

output

positive voltage

circuit

PGND

HVMON

MHVDR

THVDR

PSEL

HVISEL

+24 V

+24 V IN

+24 V

+5 V

THERM, EXTN

SGND

Interlock switch

High voltage board

Bias board

Power supply board

Engine board

Main charger

Transfer roller

High voltage output circuit

FAN, HEAT,

SENPOW

Control

and

driver

circuit
