Kyocera FS-1000 Plus [85/163] 2 removing the main board

FS-1000/1000+

5-12

(2) Removing the main board

1. Remove the process unit (See page 5-4).

2. Remove the top/face-down output tray and right cover (See pages 5-4 and 5-5).

3. Remove two connectors 1 from main board 2.

4. Remove six screws 3.

5. Remove the controller box (with main board) 4.

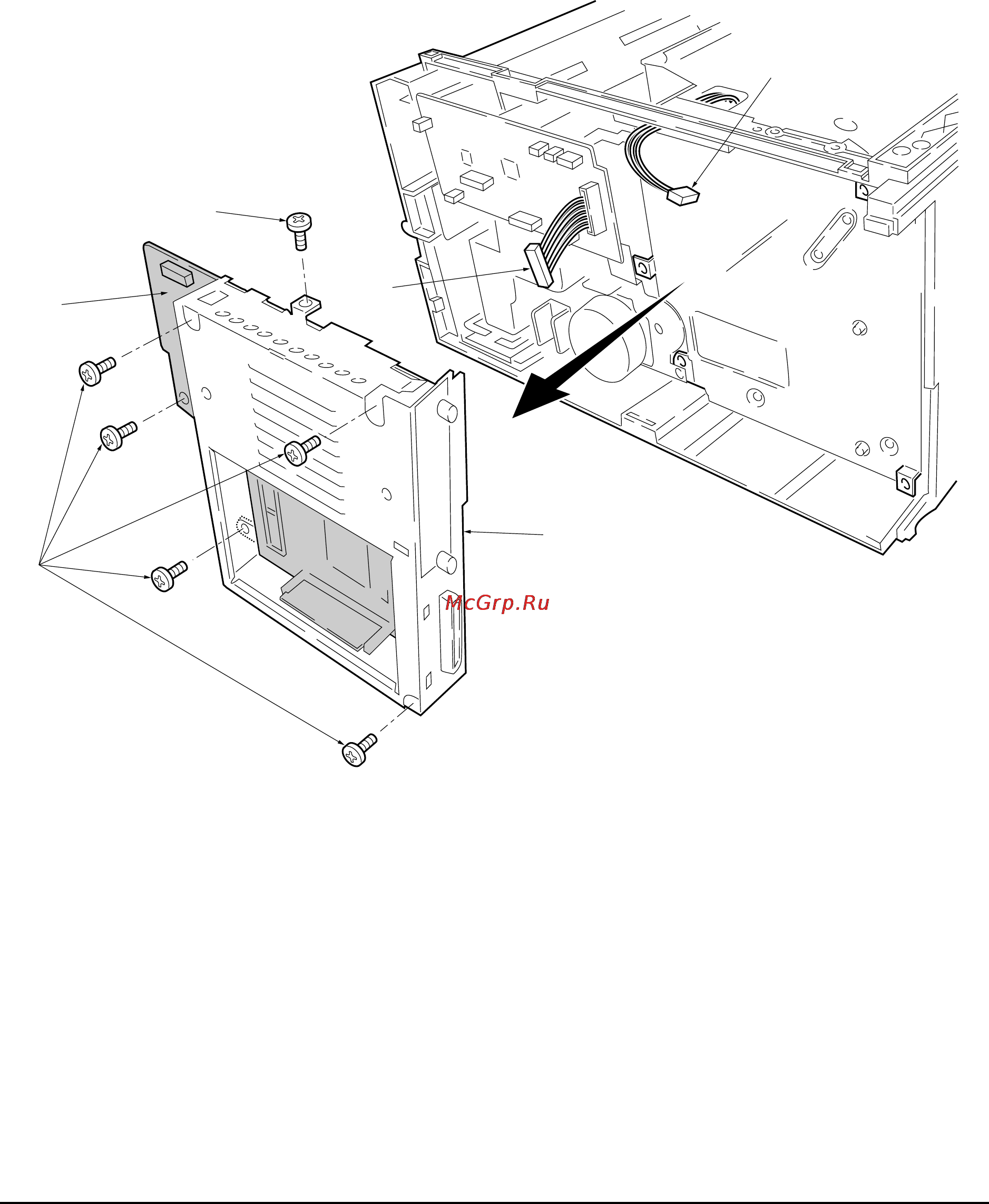

Figure 5-2-9 Removing the controller box (with main board)
