6-1-2 Service error indications
Service errors are represented by the alternating flashing of the indicators (LEDs). Each error is
represented by the notation of “D”, “E” and “F” and can be monitored on the Remote Operation
Panel utility. e.g. E1 is for the main motor error.

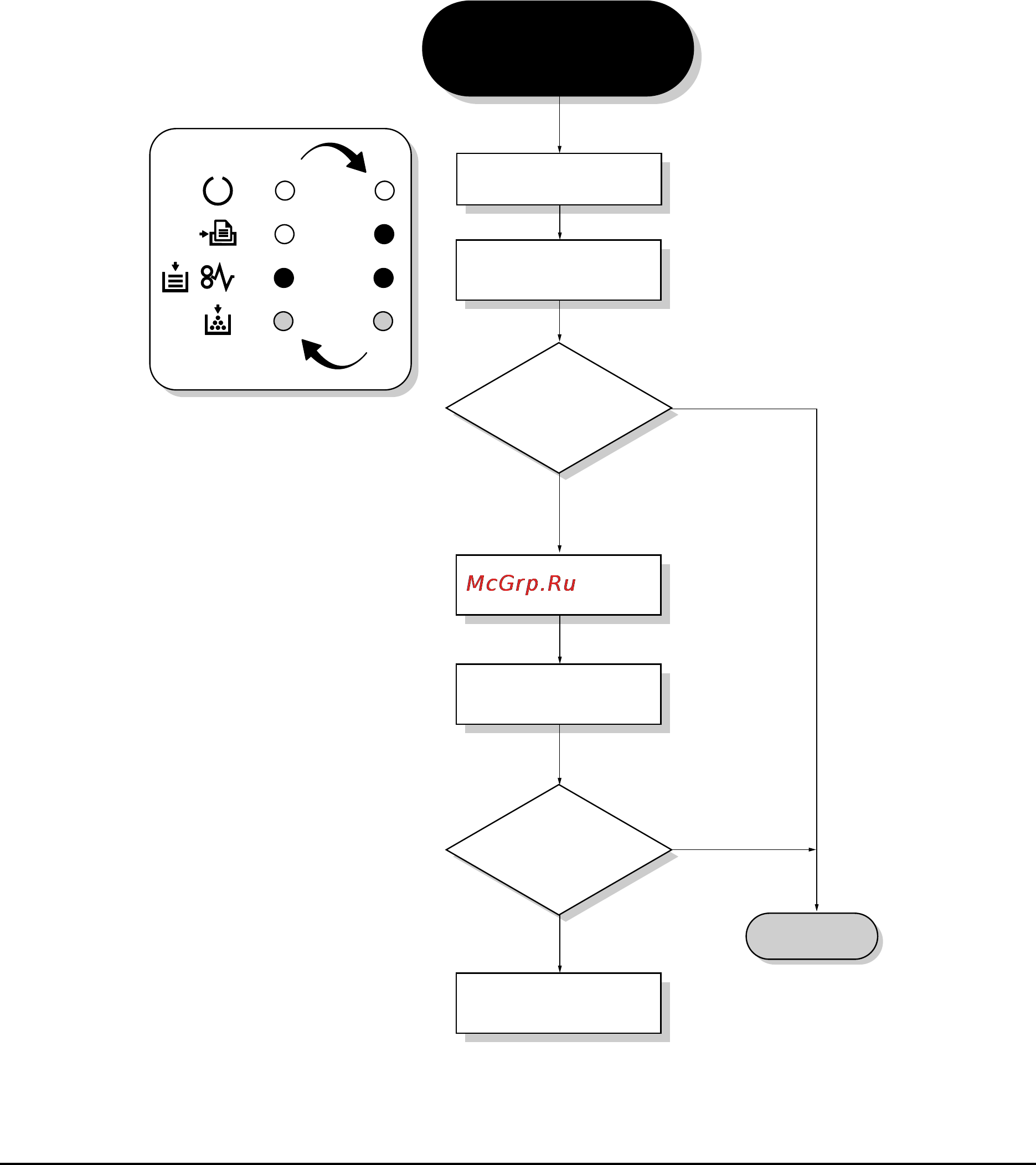

(1) D9 Waste toner full [Total page count less than 100,000 pages of printing]
Replace the waste toner
sensor or engine board.
Yes
Yes
No
No
Shake the process unit
horizontally.
Turn power switch off,
then on.
Replace the process
unit.
"D9" shown?
Turn power switch off,
then on.
"D9" shown?
Call service
personD9:nnnnnn
End.
Printer indicators
