Kyocera FS-1000 Plus [80/163] 2 3 removing the feed roller

FS-1000/1000+

5-7

5-2-3 Removing the feed roller

CAUTION When refit the feed roller, fit the D-cut shaft into the D-shape hole of the feed

roller.

1. Remove the paper cassette and the process unit. (See page 5-4)

2. Stand the machine the front side up.

3. Move the feed roller in the direction A, and remove the feed roller 1.

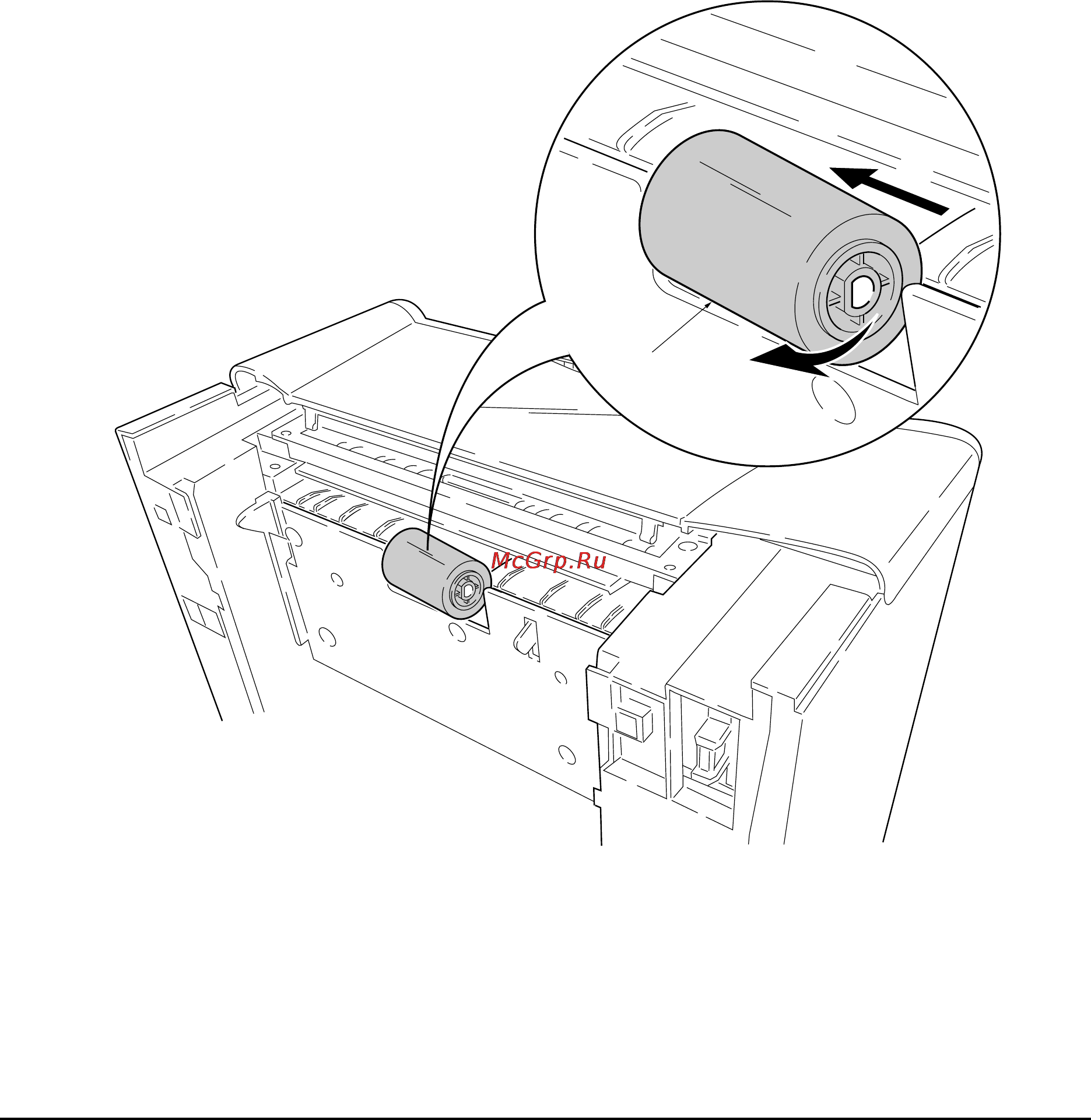

Figure 5-2-5 Removing the feed roller
