Kyocera FS-1000 Plus [23/163] 1 unpacking

FS-1000/1000+

2-3

2-1 Unpacking

2-1-1 Unpacking and inspection

The package should contain the printer and the accessories as shown in the figure below. Remove

the printer and all the accessories from the package.

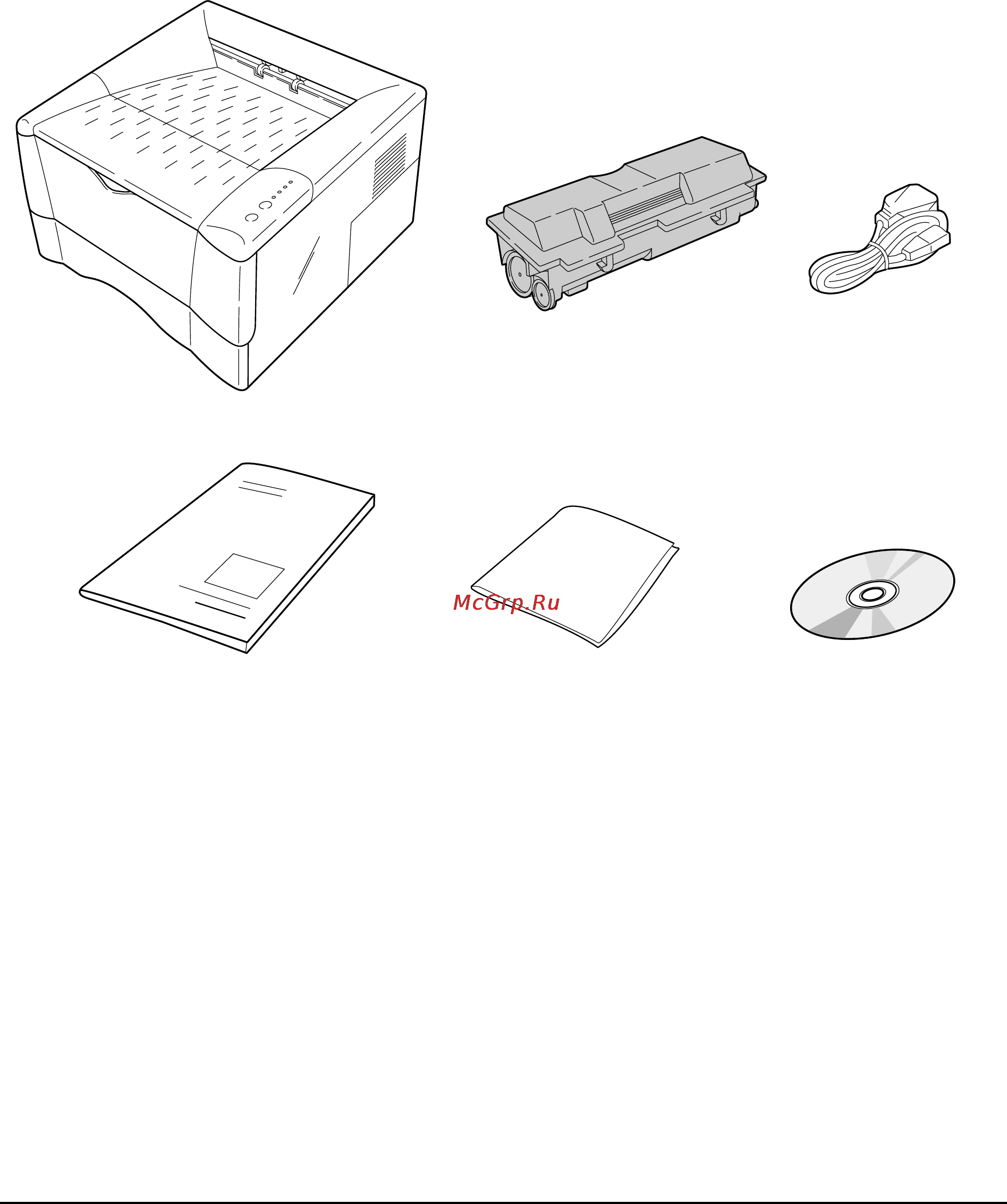

Figure 2-1-1 Unpacking

For unpacking, place the box containing the printer on a flat, stable surface. Remove the manuals,

toner kit, and other items located on top of the spacer and remove the spacer. Carefully remove the

printer. Obtain help from other persons if necessary.

Printer

Toner container (TK-17)

Power cord

Installation manual

Cleaning cloth

Kyocera digital library CD-ROM
