Kyocera FS-1000 Plus [43/163] 1 cleaning the registration roller

3-8

FS-1000/1000+

(1) Cleaning the registration roller

Use the supplied wiper cloth 1 to clean dust and dirt away from the registration roller 2 (metal).

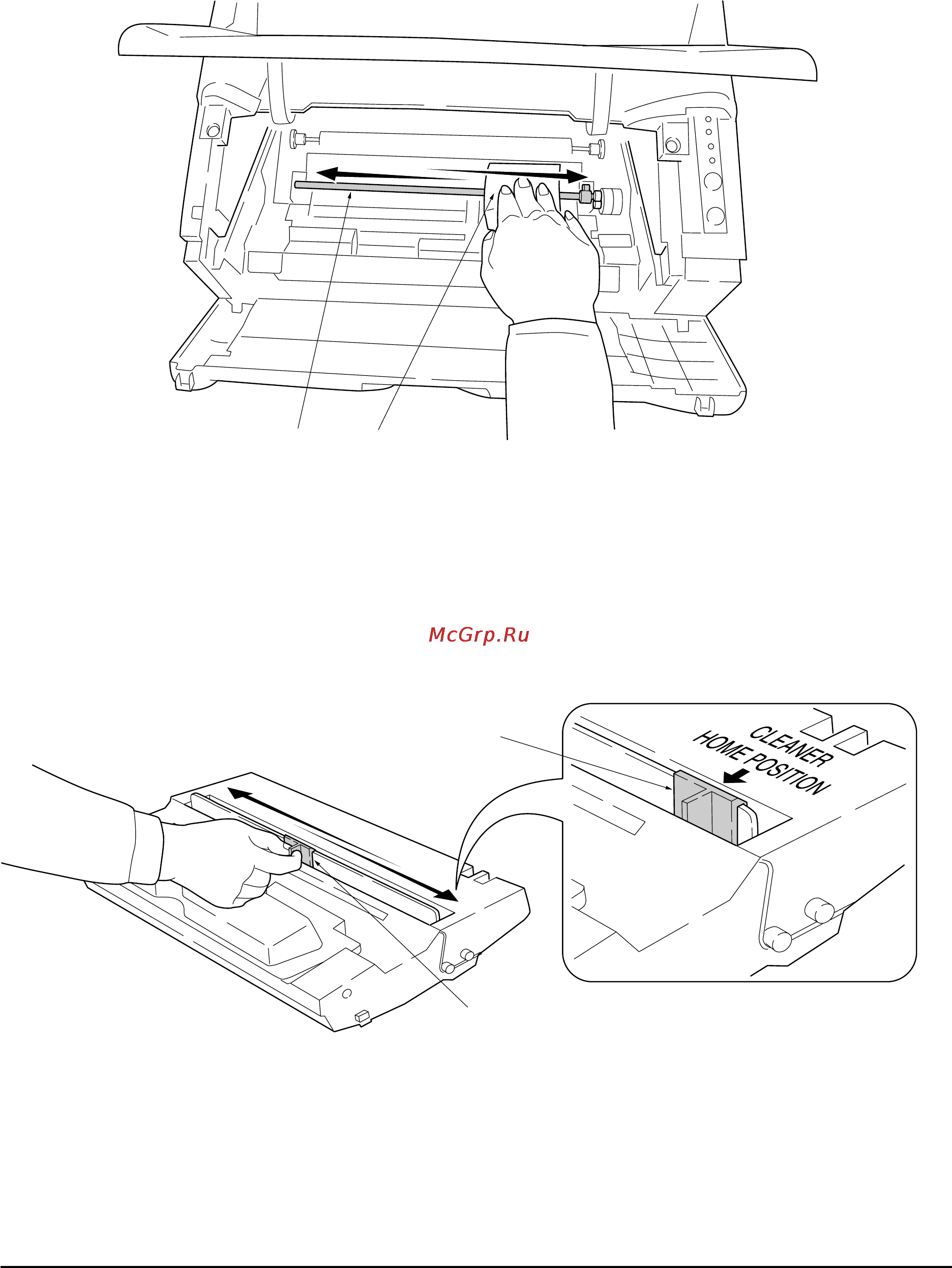

Figure 3-1-5 Cleaning the registration roller

(2) Cleaning the main charger wire

Slide the charger cleaner knob (green colored) back and forth 2 to 3 times, then return it to its

[CLEANER HOME POSITION].

Figure 3-1-6 Cleaning the main charger wire

After cleaning is done, install the process unit in the printer, using the reverse manner as above.

Close the front cover and top cover.
