Kyocera FS-1000 Plus [163/163] Rs 422a
![Kyocera FS-1000 Plus [163/163] Rs 422a](/views2/1147197/page163/bga3.png)
C-10
FS-1000/1000+

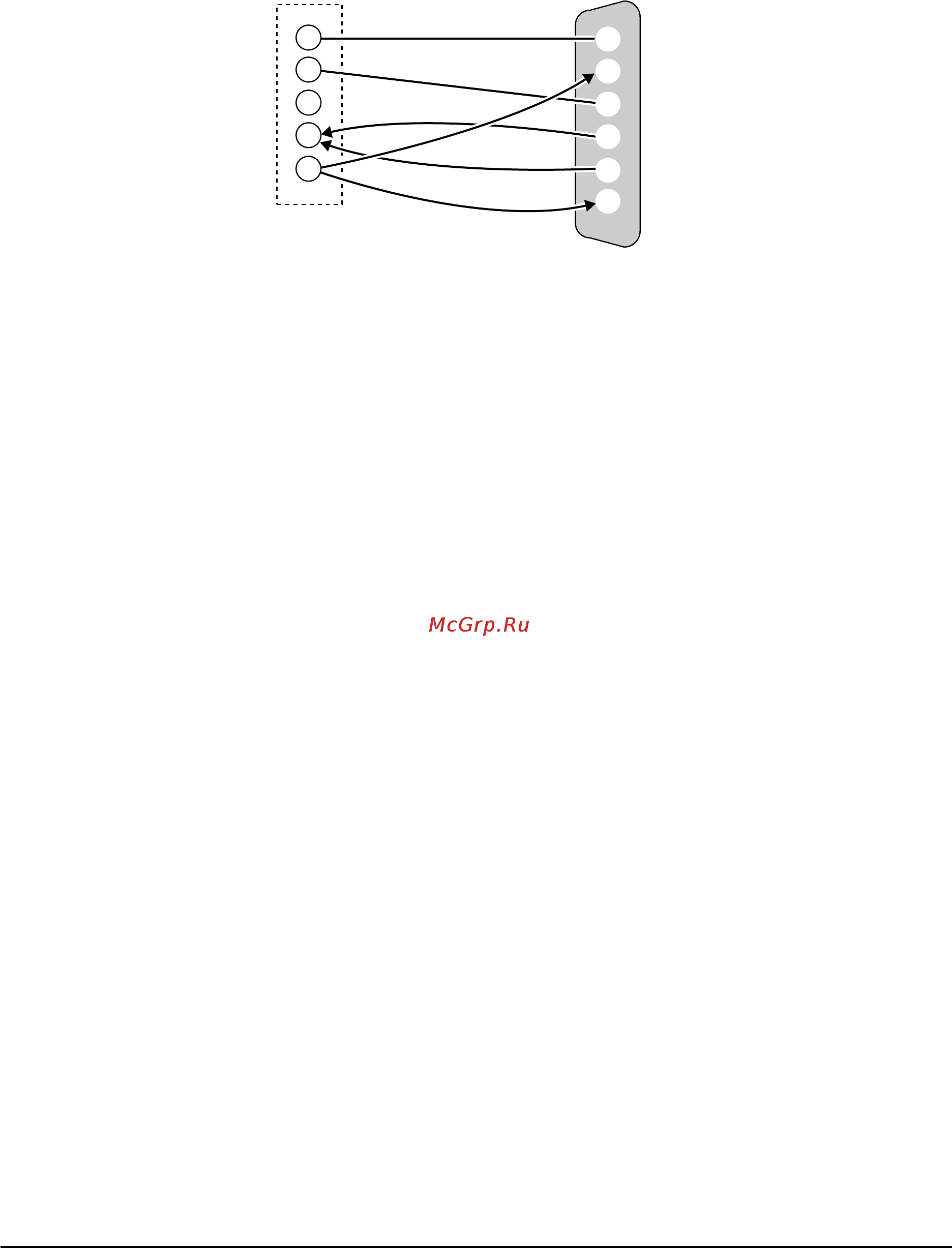

RS-422A
Frame ground
Signal ground
Rx terminal
Tx terminal
FG
RD−
SG
SD−
SD+
RD+
1
3
7
9
0
*
Computer
serial interface
Printer
serial port (DB-25)
On the computer serial port, investigate pin assignments depends on the computer manufacture’s
instruction. Since the RS-422A configuration does not employ control lines except for data
transmission/reception, select a mode in which signals such as DTR are not used.
Protocol
The serial interface supports the full baud rate of: 1200, 2400, 4800, 9600, and 19200, 38400,
57600 and 115.2 k (bps). For adjusting serial interface parameters including baud rate, parity, etc.,
refer to optional Serial interface board IB-10E User’s Manual.
