Kyocera FS-1000 Plus [89/163] 2 7 removing the main motor and drive unit

FS-1000/1000+

5-16

5-2-7 Removing the main motor and drive unit

1. Remove the cassette and process unit (See page 5-4).

2. Remove the top cover/face-down output tray and right cover (See pages 5-5 and 5-6).

3. Remove three connectors 1 from the main motor 2.

4. Remove four screws 3.

5. Remove main motor 2.

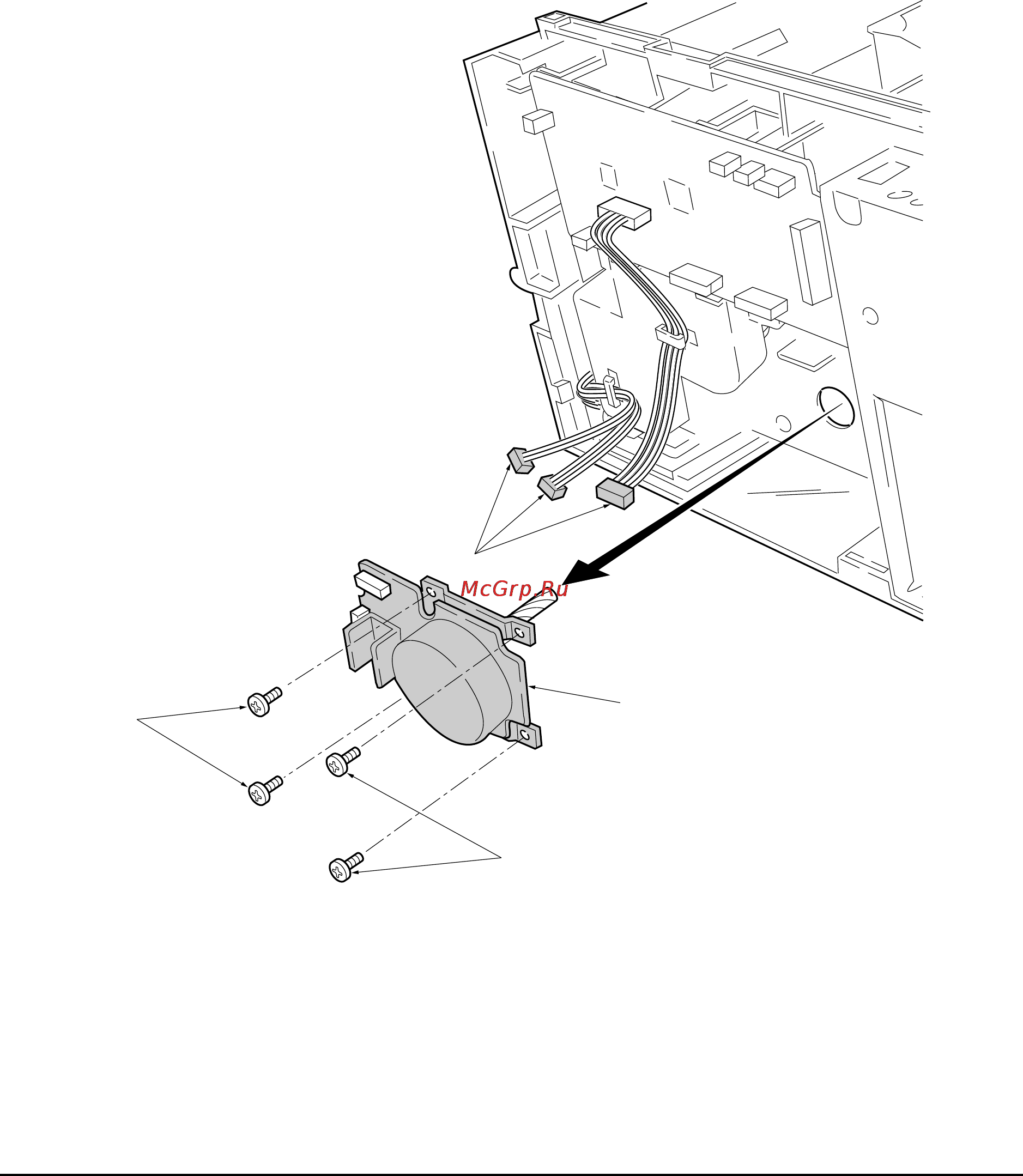

Figure 5-2-13 Removing the main motor
