Kyocera FS-1000 Plus [66/163] Eraser lamp control circuit
![Kyocera FS-1000 Plus [66/163] Eraser lamp control circuit](/views2/1147197/page66/bg42.png)
4-21
FS-1000/1000+

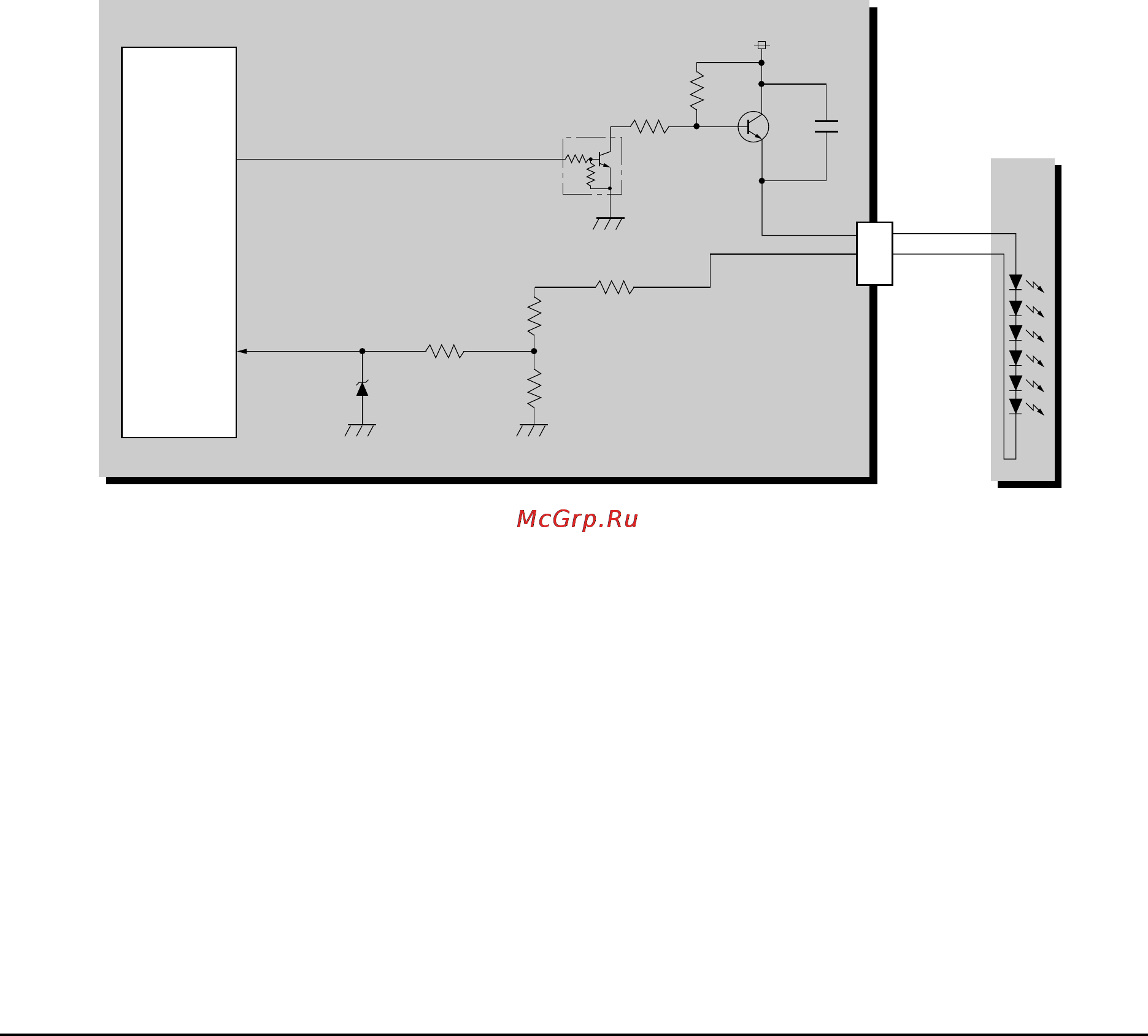

Eraser lamp control circuit
The CPU turns pin #45 (ERASERN) of U01 to H level, transistors Q12 and Q13 turns on
consequently, and the 24 V DC given at pin #1 of YC05 applies to the eraser lamps. The eraser
lamps thus illuminate as the current flows through the eraser lamp, the 2nd pin of YC05, resistors
R58, R59, and R61, and the ground.
Pin #27 (ERRDYN) of the CPU U01 is wired to the crossing of R59 and R61 via R60. The CPU
turns pin #45 (ERASERN) to H level and monitors the input level after one second. If the eraser
lamp is normal, the current flowing through R60 also flows DZ02, making the voltage at pin #27 to
be approximately 2.7 V. On the contrary, if the level at pin #27 (ERRDYN) is less than 1 V for more
than 2 seconds, despite the CPU turns pin #45 (ERASERN) to H level and applying the 24 V DC to
pin #1 of YC05, the CPU recognizes that the current is not flowing through the eraser lamp. The
message “Call service person E5” is then displayed.
R57
R58
R60
R58
GND
GND
GND
1
1
2
2
3
Q13
2
3
1
ERRDYN
1
2
R59
R61
DZ02
Q12
ERASERN
+24V
ERASPW
C32
Eraser lamp
YC05
P16/ANI6
P02/INTP2
27
45
CPU
U01
ERASER
Engine board
Eraser lamp cotrol circuit
Figure 4-3-4 Eraser lamp control circuit
