6-18
FS-1000/1000+
(8) F1 Controller checksum error
Turn power switch off, then on. If not solved, replace the main board (See page 5-12).
(9) F2 Controller RAM read/write error
Remove the expansion memory (DIMM). Turn power switch off, then on. If not solved, replace the
main board. If solved, replace the expanding memory (See pages 2-8 and 5-12).
(10) F3 Controller system error
Turn power switch off, then on. If not solved, replace the main board (See page 5-12).

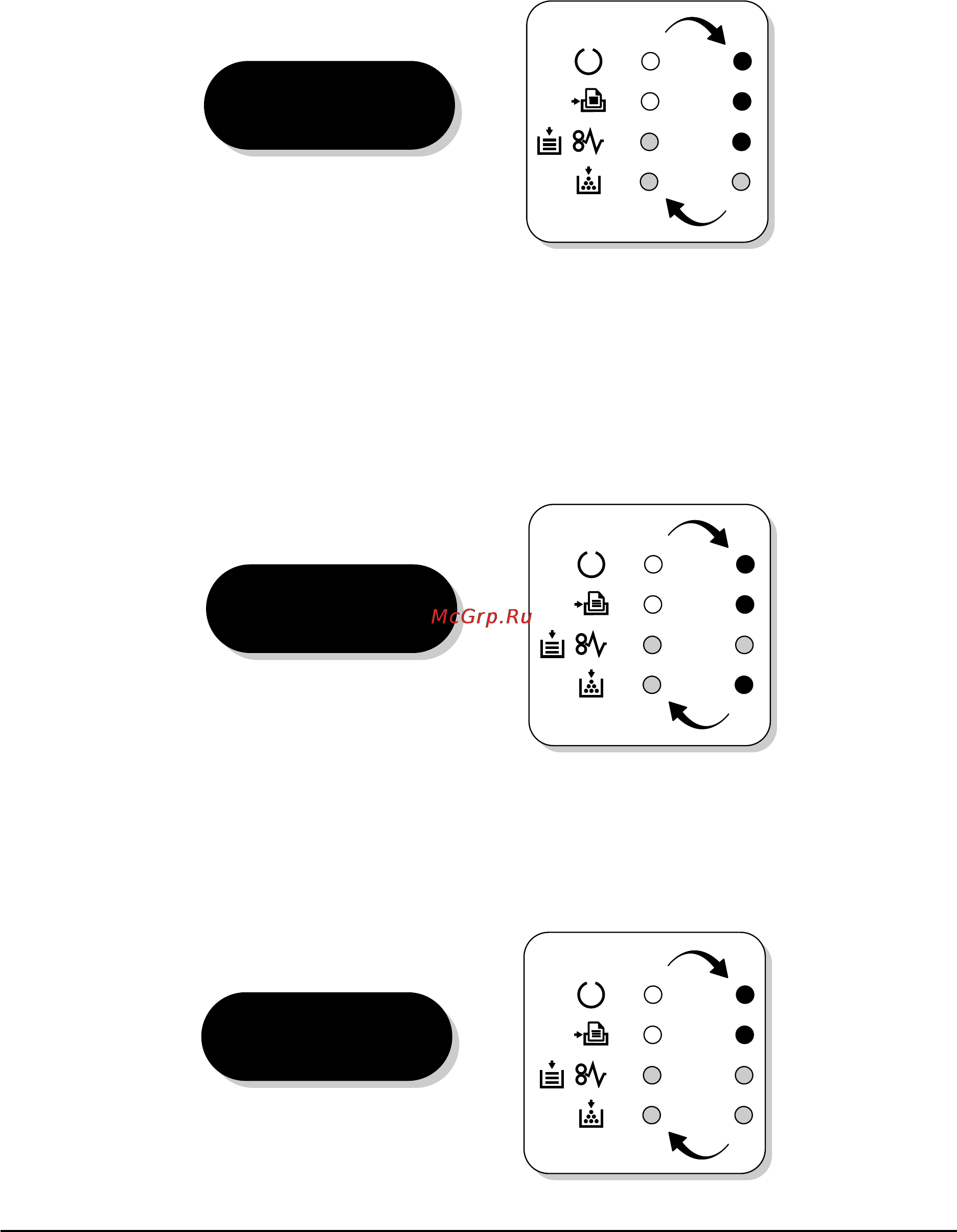

Printer indicators
Remote Operation Panel
Call service
personF1:nnnnnn
Printer indicators
Call service
personF2:nnnnnn
Remote Operation Panel
Printer indicators
Call service
personF3:nnnnnn
Remote Operation Panel
