6-12
FS-1000/1000+

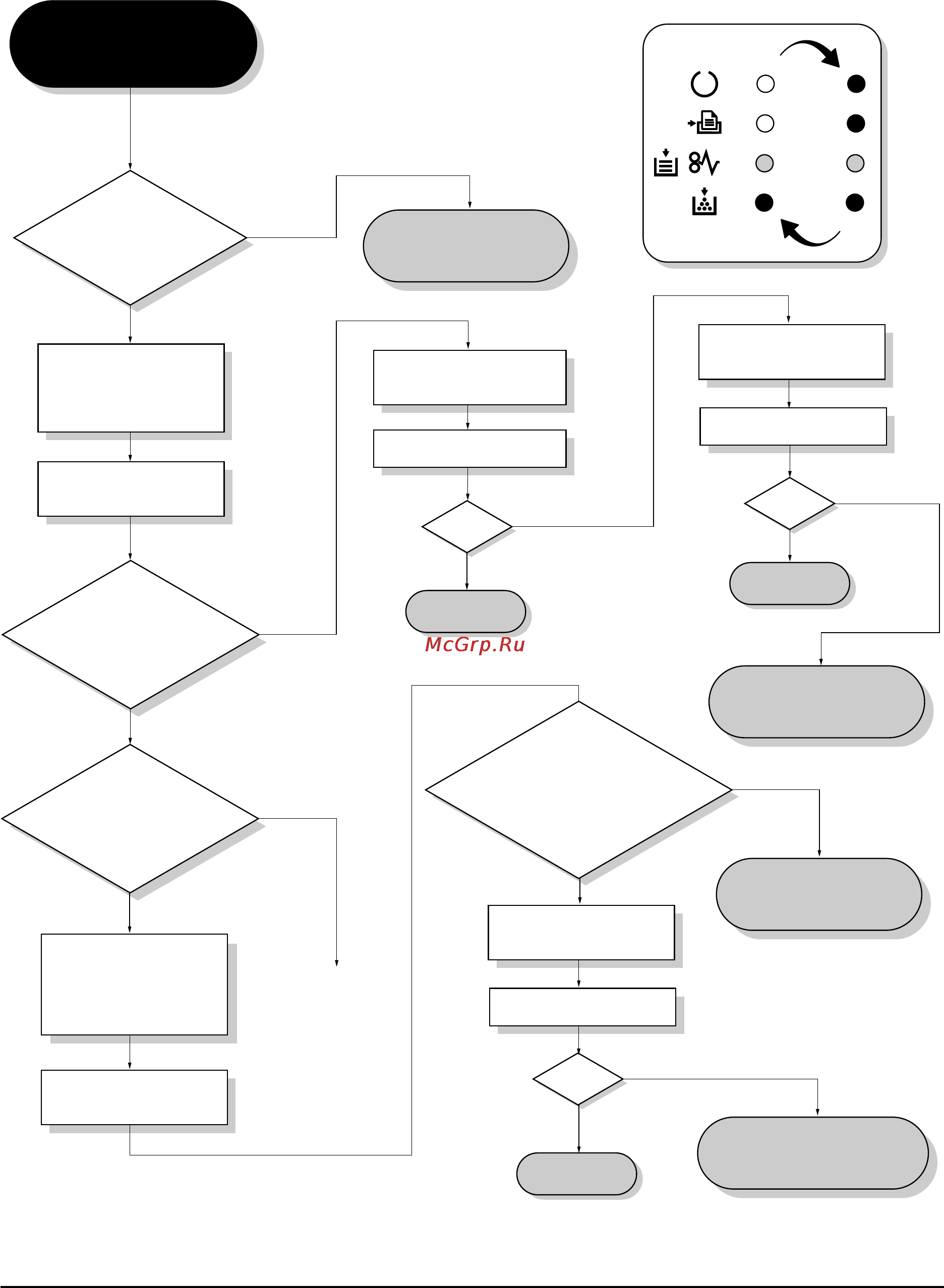

(4) E2 Laser scanner unit [Polygon motor] error
Yes
Yes
Yes
No
No
No
No
No
No
Connect oscilloscope to
pin 1 (PLGCLK) and pin
3 (PLGDRN) of YC06 on
engine board (KP-781).
Turn power switch off,
then on.
Turn power switch off,
then on.
Turn power switch on.
+24 V DC at pin 5 of
YC06 on engine board
(KP-781) ?
Does
pin 3 (PLGDRN) of
YC06 on engine board
(KP-781) goes high,
then low?
Does
pin 1 (PLGCLK) of
YC06 on engine board
(KP-781) output
square-wave*
signal?
Does pin 2
(PLGRDYN) of YC6 on
engine board (KP-781) goes
high, then low, within 8 seconds
after pin 3 (PLGDRN)
goes high, then
low?
Call service
personE2:nnnnnn
Replace engine board
(KP-781). See page 5-11.
Replace harness (S02503)
between engine bard and
laser scanner unit.
Replace harness (S02503)
between engine bard and
laser scanner unit.
Yes
Replace engine board
(KP-781). See page 5-11.
Replace engine board
(KP-781). See page 5-11.
Replace laser scanner
unit. See page 5-29.
Connect oscilloscope to
pin 2 (PLGRDYN) and
pin 3 (PLGDRN) of
YC06 on engine board
(KP-781).
*: 1417 Hz
(705 µs)
OK?
OK?
Yes
Yes
Yes
Turn power switch on.
Replace laser scanner
unit. See page 5-29.
Turn power switch on.
OK?
End.
End.
End.
A
Continued
to next page.
No
Printer indicators
