FS-1000/1000+

5-30

5. Remove three screws 6.

6. Remove one connector 7 from the laser scanner unit 8.

7. Remove the laser scanner unit 8.

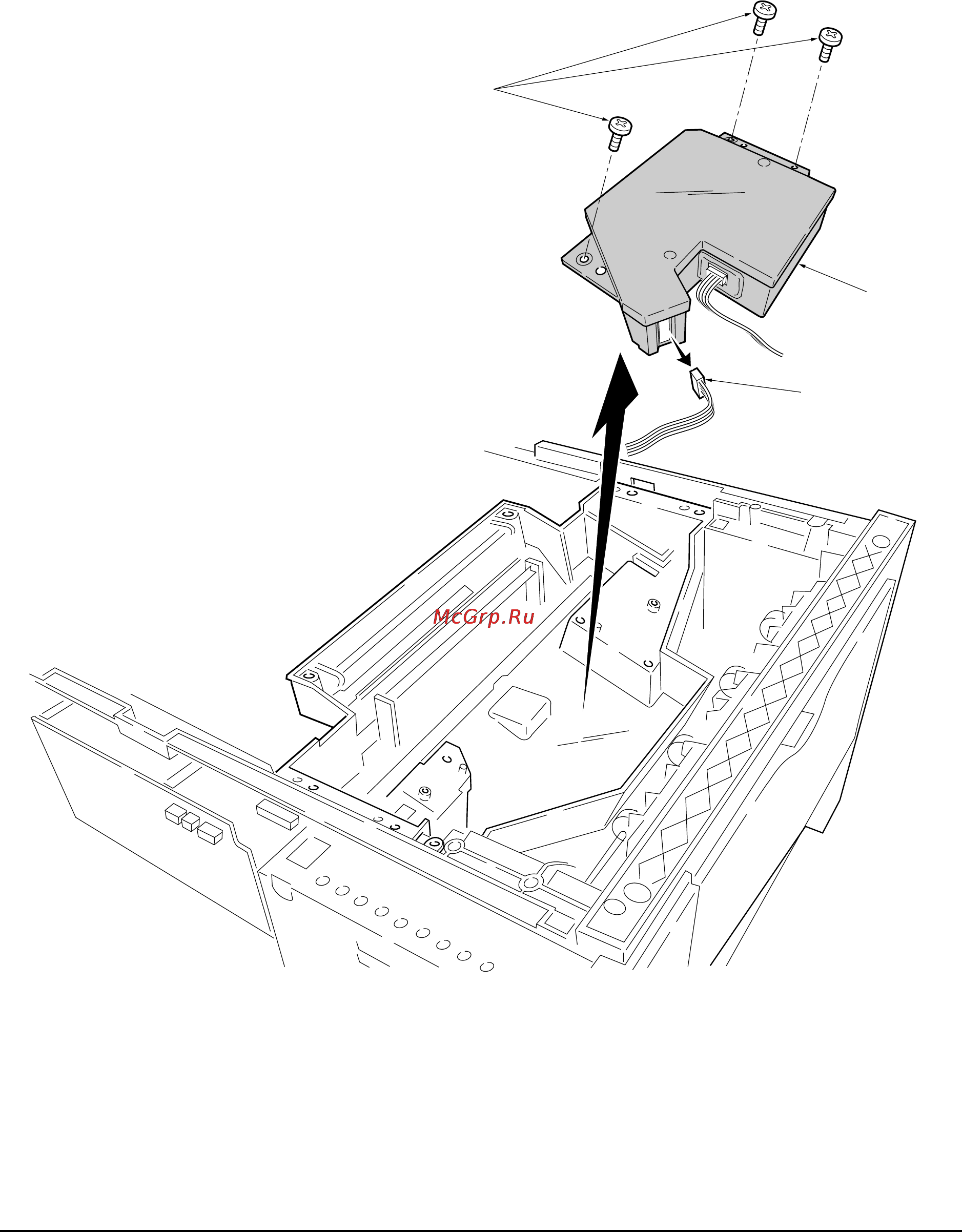

Figure 5-2-27 Removing the laser scanner unit
