5. Install the toner container 2 into the printer.

6. Push firmly on the top of the toner container 2 at the positions marked [PUSH HERE].

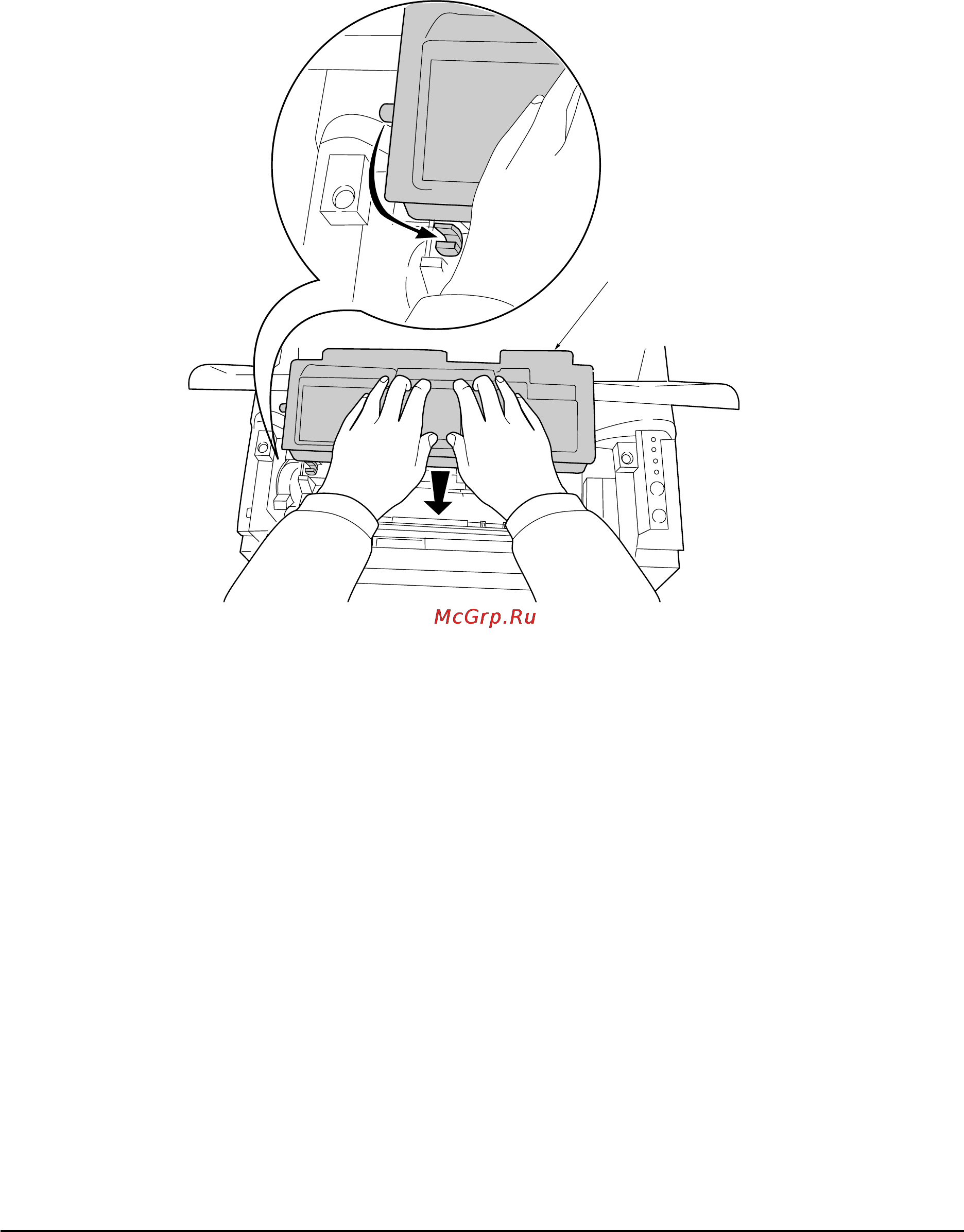

Figure 2-2-4 Installing the toner container
