Сервис мануал Страница: 94

Kyocera FS-1000 Plus Сервис мануал онлайн [94/163] 134925

FS-1000/1000+

5-21

7. Remove two screws 5.

8. Open and split the fuser unit 4.

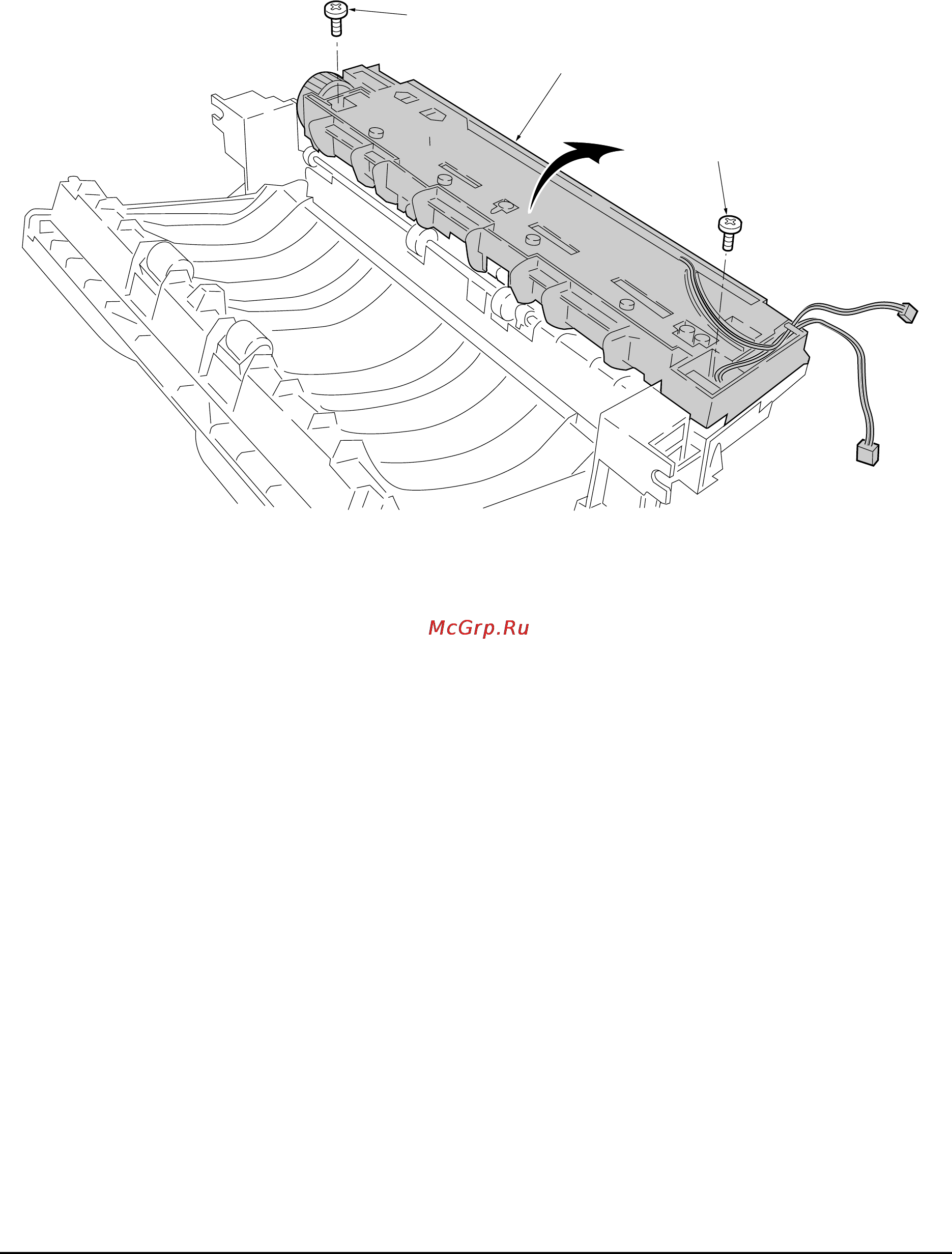

Figure 5-2-18 Splitting the fuser unit
