Using the Network Configuration
For using further applications of DRS-200, you have to set up related configurations by
following steps after reboot the PC.

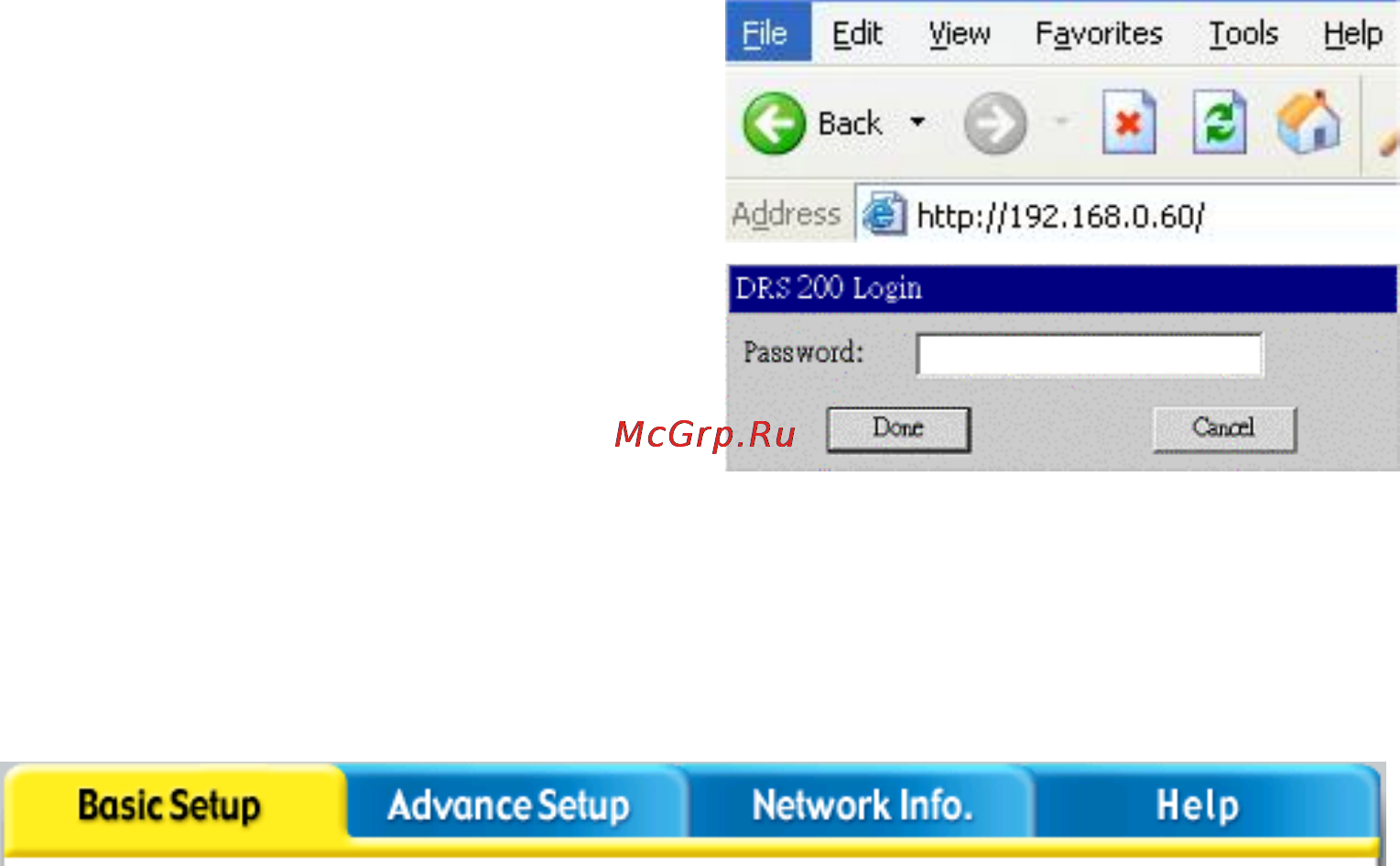

■ Open the PC Web browser. (Ex:
Microsoft Internet Explore)
■ Enter "192.168.0.60" in the Address
or Location box.
■ Click the “DONE” button.
Note: If you have changed the default IP
Address assigned to the DRS-200, make sure to enter the correct IP Address.
When entering the WEB management interface of DRS-200, you'll find the following
main items on the screen.
♦ Basic Setup
Includes "Primary Setup" and "Radius Setup" configuration.
♦ Advance Setup
Includes SNMP and export/import system configuration.
♦ Network Info
This item shows system and radius status, you can setup password here too.
