D-Link DRS-200 [28/69] Using the network configuration

Using the Network Configuration

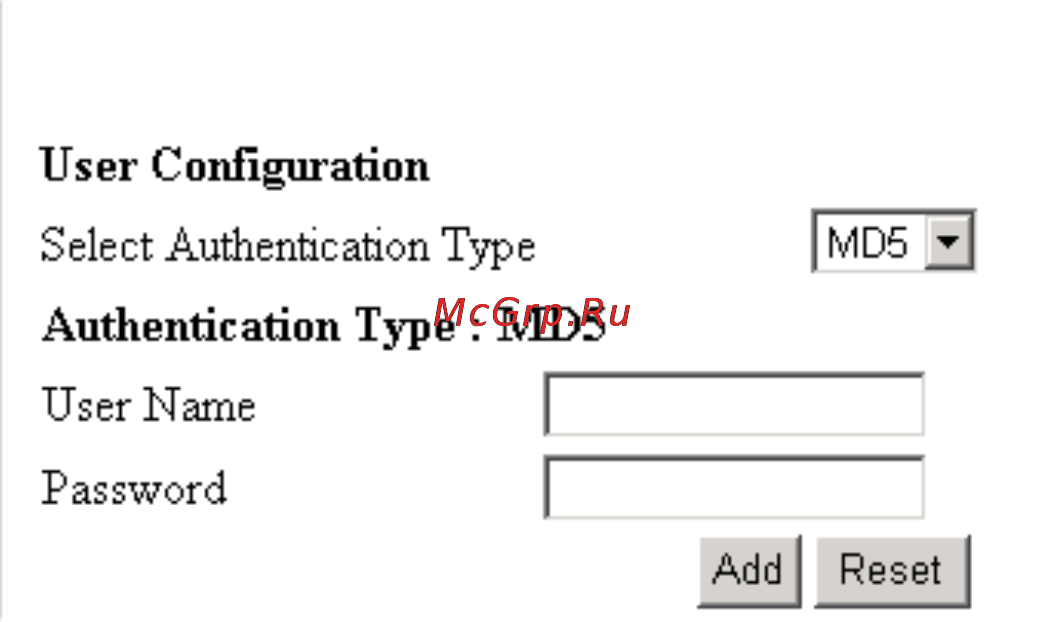

Basic Setup > Radius Setup > User Configuration > MD5

User Name- Administrators can setup user names here.

Password- Please enter the password for USER authentication.

Click "Add" this record in database. You can also click "Reset" to clear User Name,

Password, and re-enter again.

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
