Using the Network Configuration

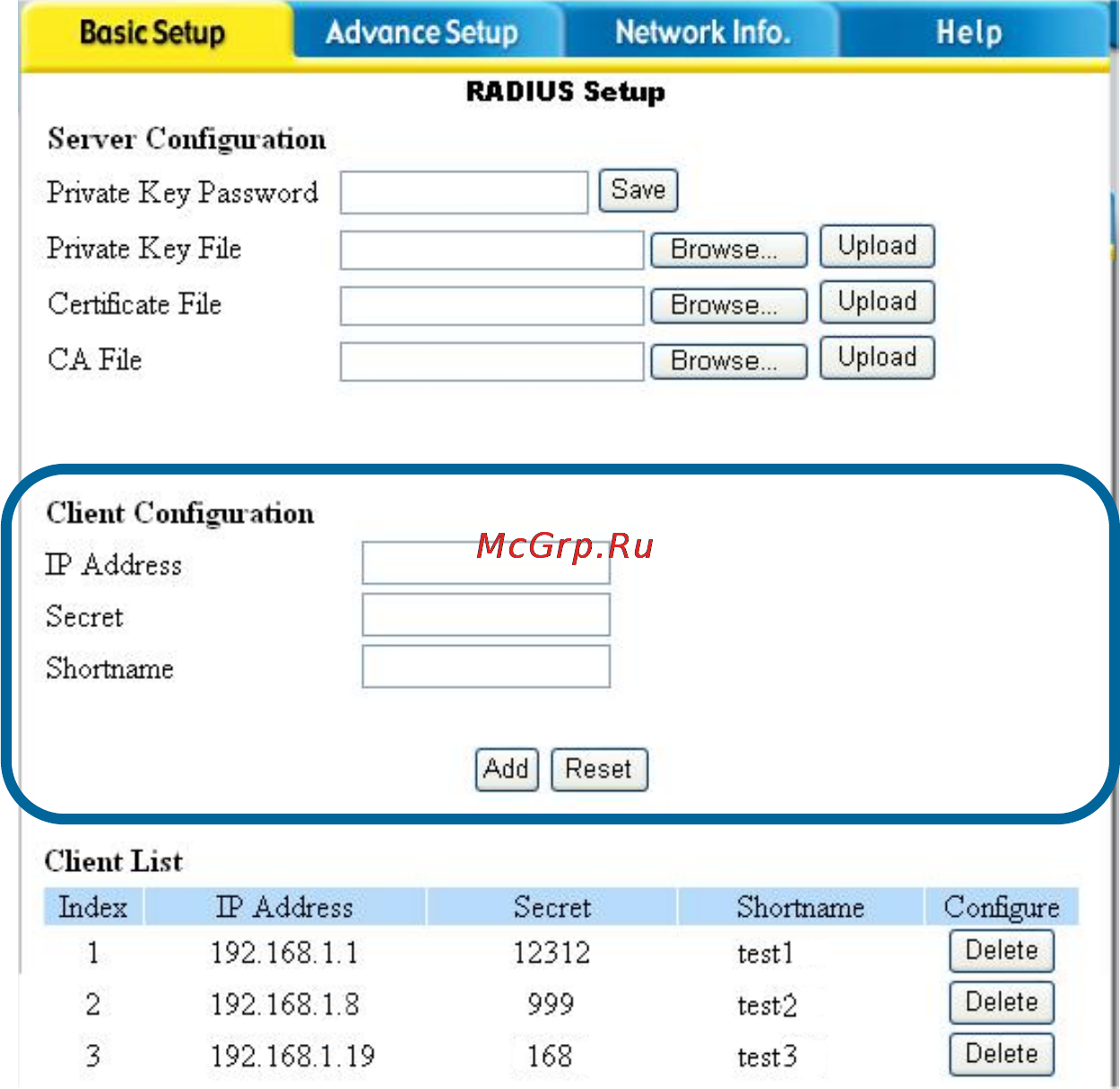

Basic Setup > Radius Setup > Client Configuration

When several Wireless Access Point exist in a network segment, administrators can

setup the related information and IP of every Wireless Access Point in this item.

DRS-200 can save up to 100 records of Wireless Access Points data

IP Address- Please enter the IP Address of Wireless Access Point. Please notice that,

the IP of Wireless Access Point and DRS-200's IP must exist in the same

Class C.
