D-Link DRS-200 [57/69] Setup authentication in client setup tls authentication in client

Setup Authentication in client

Setup TLS authentication in client

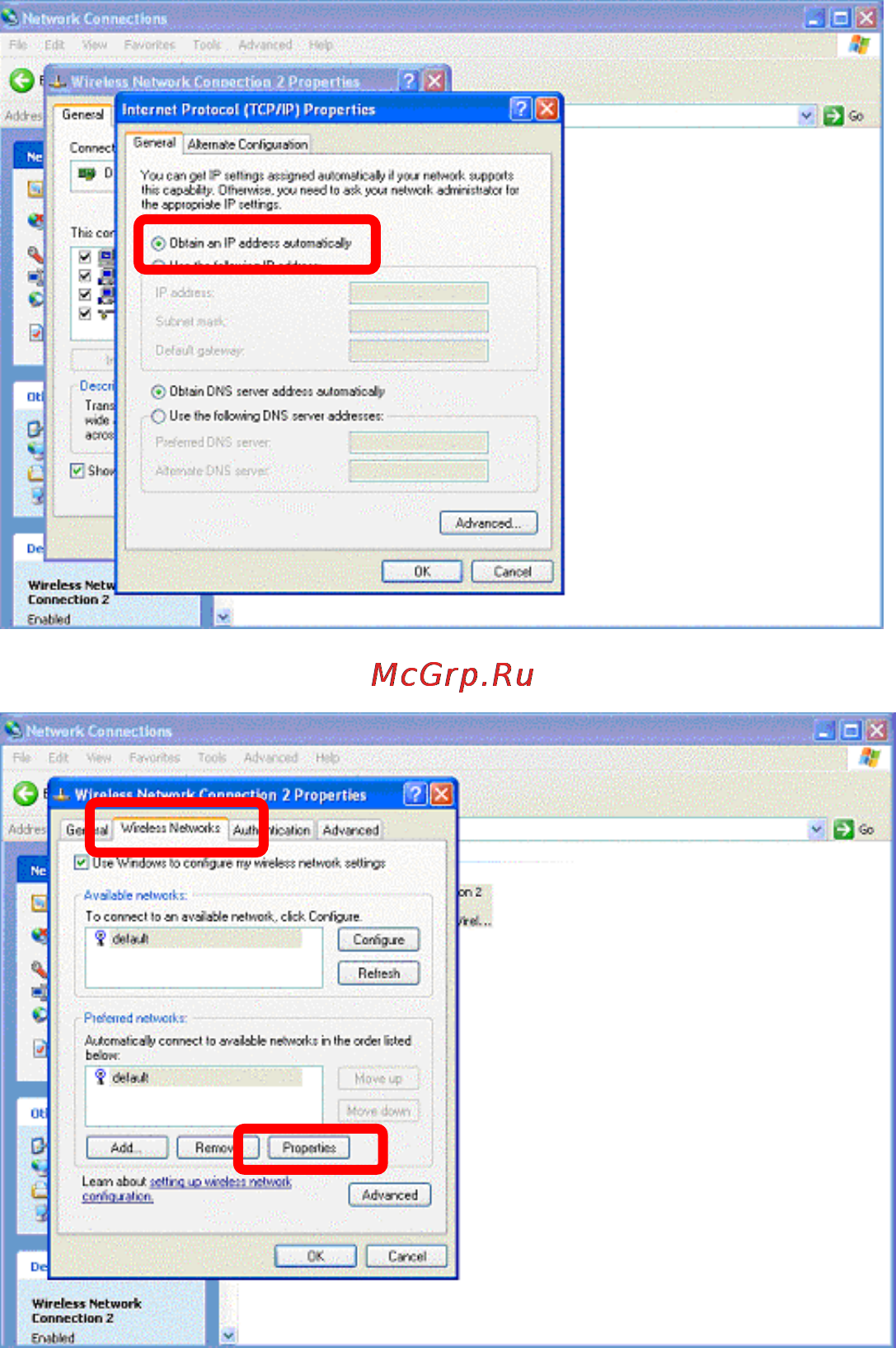

■ Select the item

"Obtain an IP

address

automatically"

■ Select the Tab

"Wireless

Networks"

■ Click the "

Properties " of you

Access Point.
