D-Link DRS-200 [30/69] Using the network configuration

Using the Network Configuration

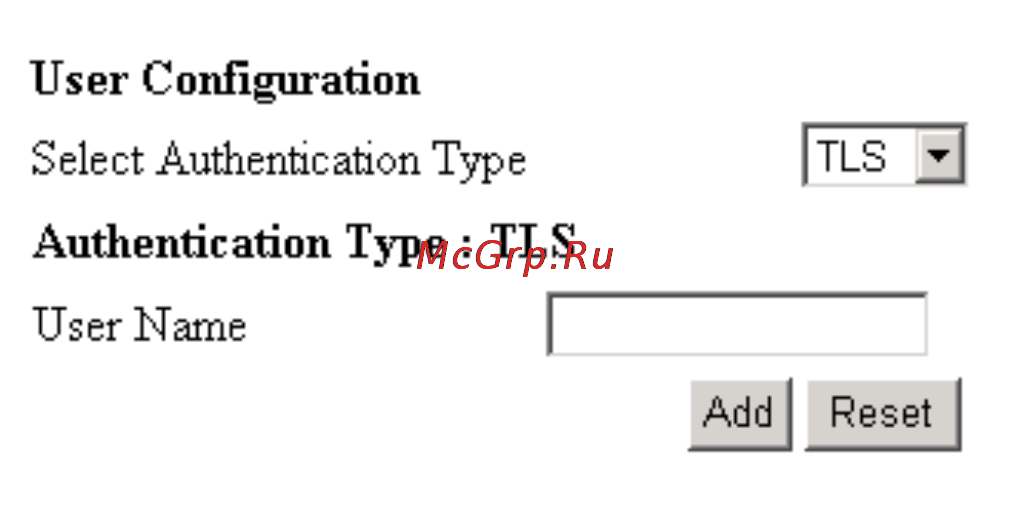

Basic Setup > Radius Setup > User Configuration >TLS

User Name- Administrators can setup user names here. The name must be as

same as authentication.

Click "Add" this record in database. You can also click "Reset" to clear user name and,

re-enter again.

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
