D-Link DRS-200 [37/69] Using the network configuration

Using the Network Configuration

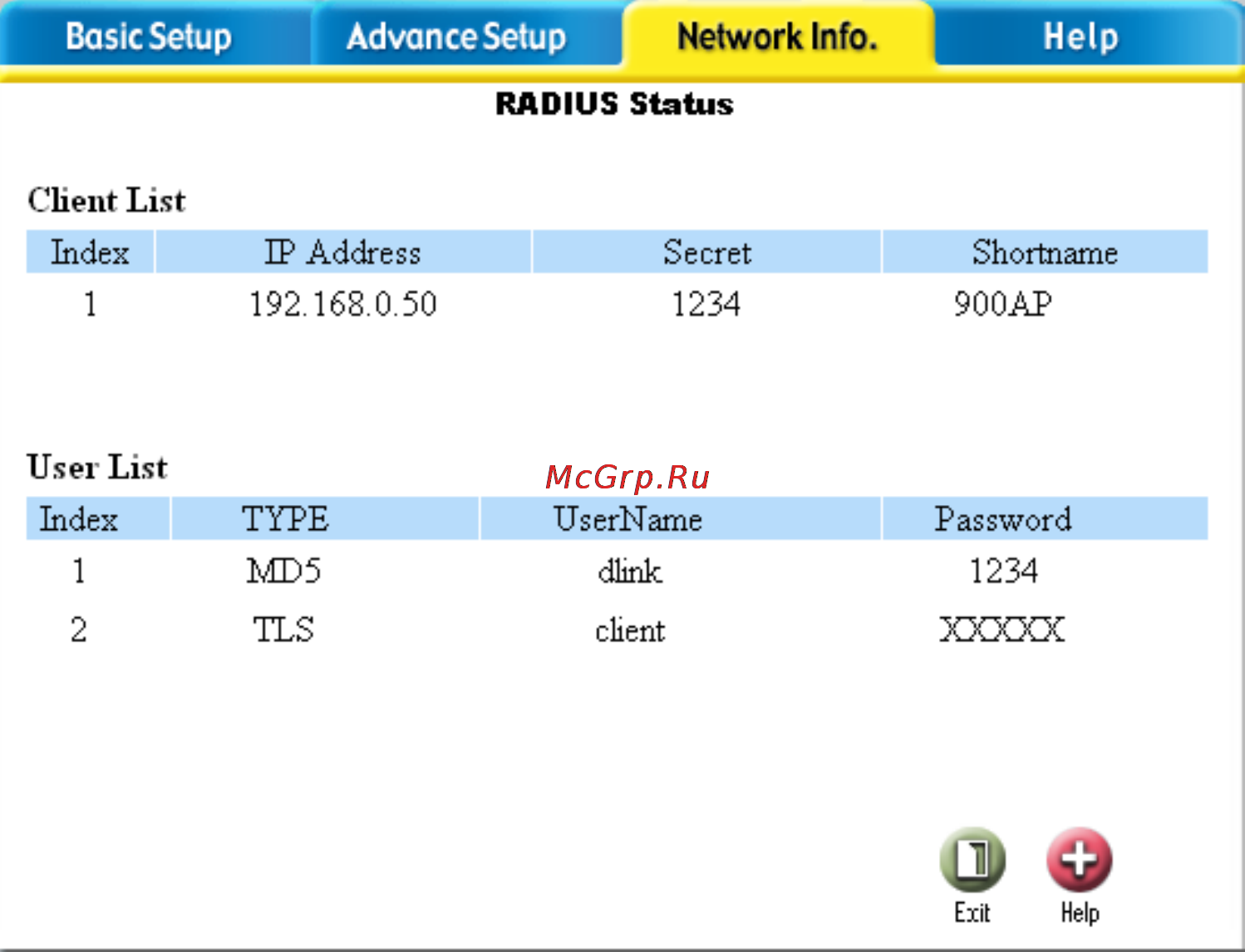

Network Info. > Radius Setup

This item will show all detail of DRS-200's Clients and Users data.

Client List- All settings of Wireless Access Points will show in this "Client List"

User List- User List will show user name and password of every

authentication type.
