D-Link DRS-200 [25/69] Using the network configuration

Using the Network Configuration

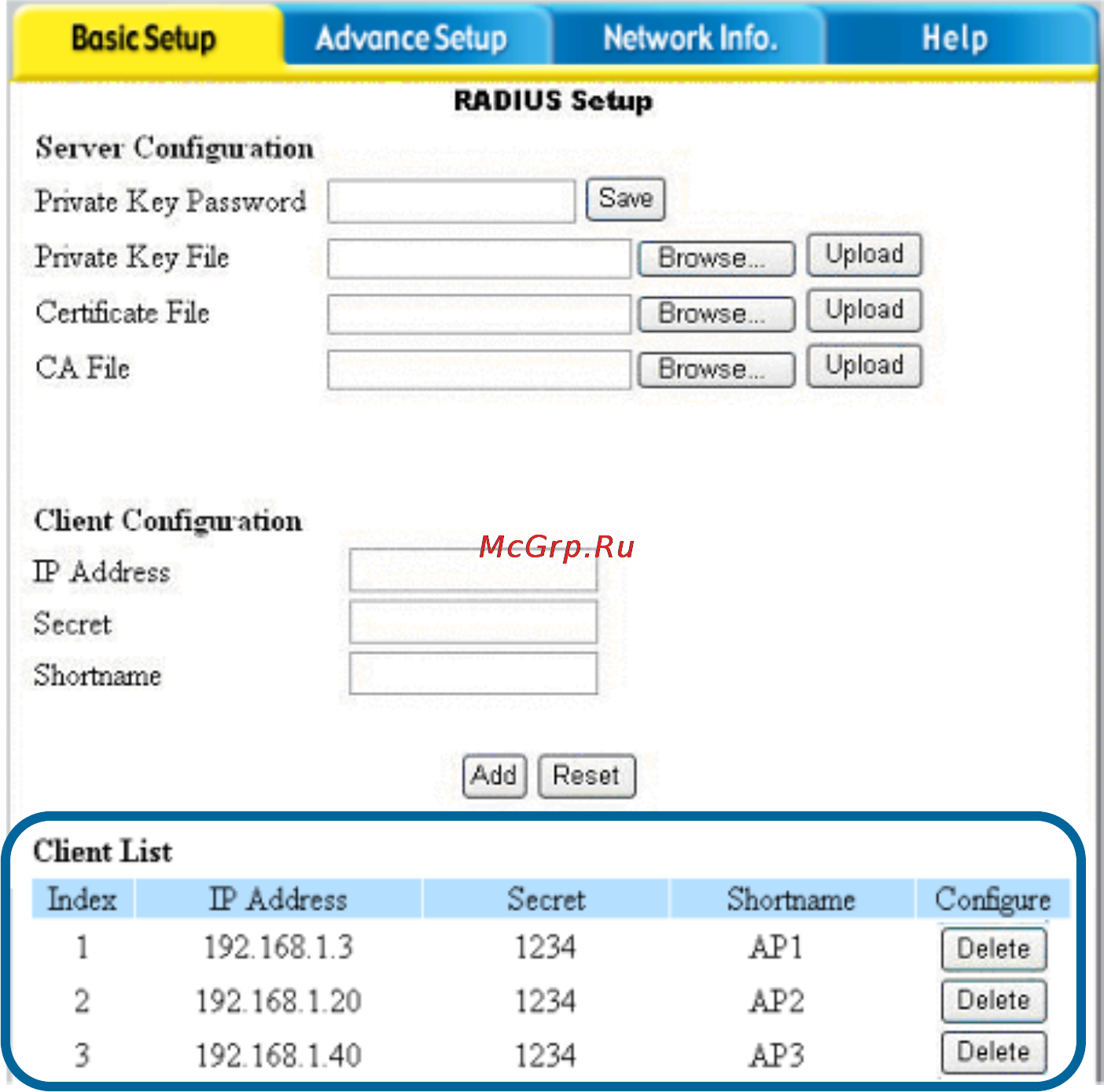

Basic Setup > Radius Setup > Client List

All settings of Wireless Access Points will show in this "Client List". You can click the

“Delete” button to delete existed setting in Configure column.

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
