Using the Network Configuration

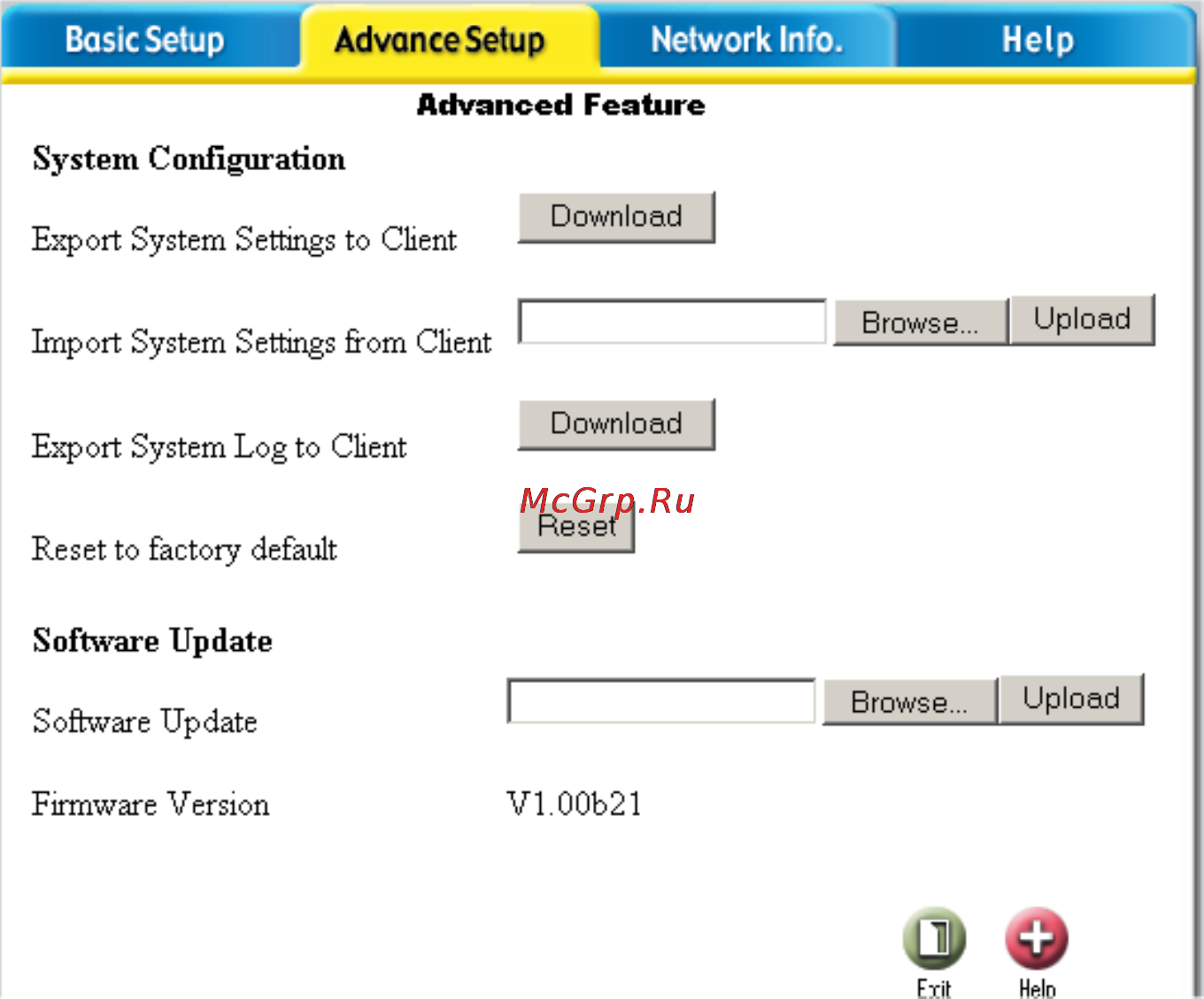

Advance Setup > Advanced Feature

This item can let you make a backup of DRS-200 configuration. When any unexpected

hardware problem happened, you don't need to set up the configuration again. Besides,

you can download the latest updating files or export system log in this item .

Export System

Setting to Client-

Please click the "Download" button to download and to

save original DRS-200 configuration as a backup.
