Using the Network Configuration

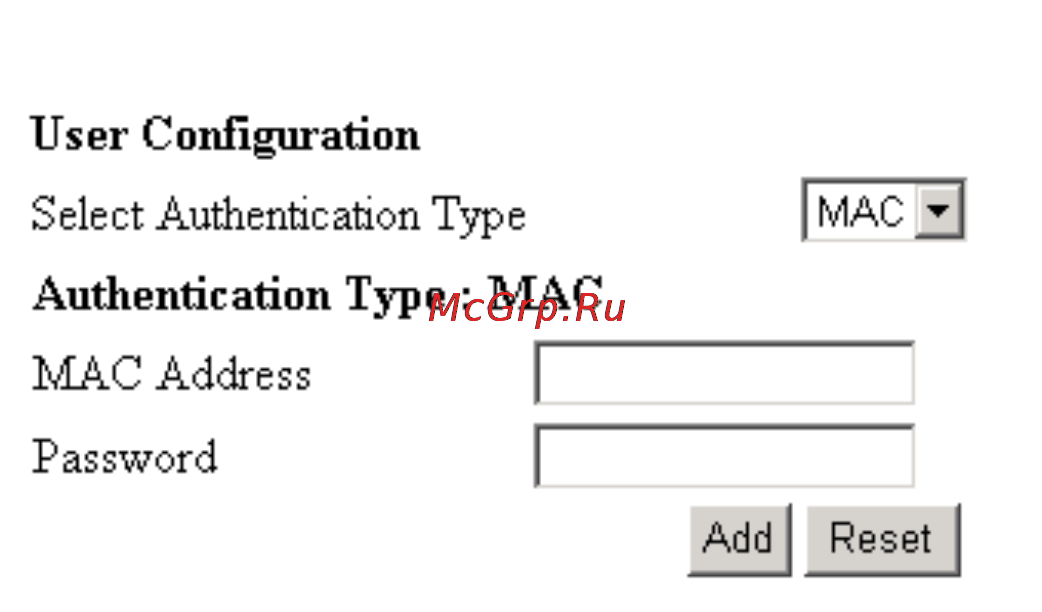

Basic Setup > Radius Setup > User Configuration >MAC

MAC Address- Please enter the User's MAC Address. The format must be

"XXXXXX-XXXXXX" (12 digits)

Password- Please enter the "Share Secret" which produced by "AP"

authentication.

Click "Add" this record in database. You can also click "Reset" to clear Mac Address,

Password, and re-enter again.

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
