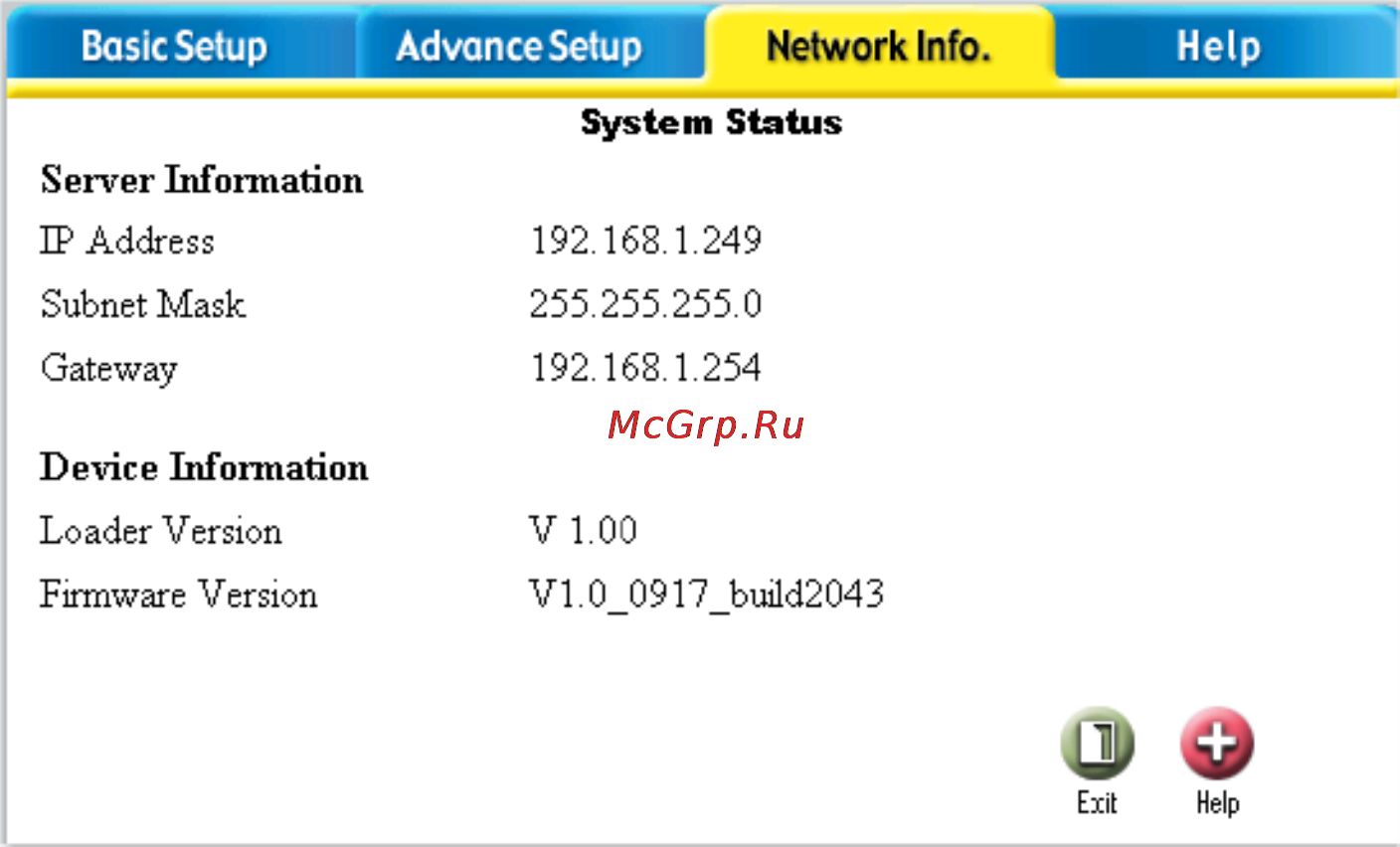

Using the Network Configuration

Network Info. > System Status

IP Address-

It shows the IP address of the DRS-200.

Subnet Mask-

It's the Network Mask (Subnet Mask) for the IP Address

above in this column.

Gateway-

The column shows the Gateway IP Address of DRS-200.

Loader Version-

This column shows the version of the Firmware Loader

currently installed.

Firmware Version-

This column shows the version of the Firmware currently

installed..
