D-Link DRS-200 [42/69] Setup authentication in client setup md5 authentication in client

Setup Authentication in client

Setup MD5 authentication in client

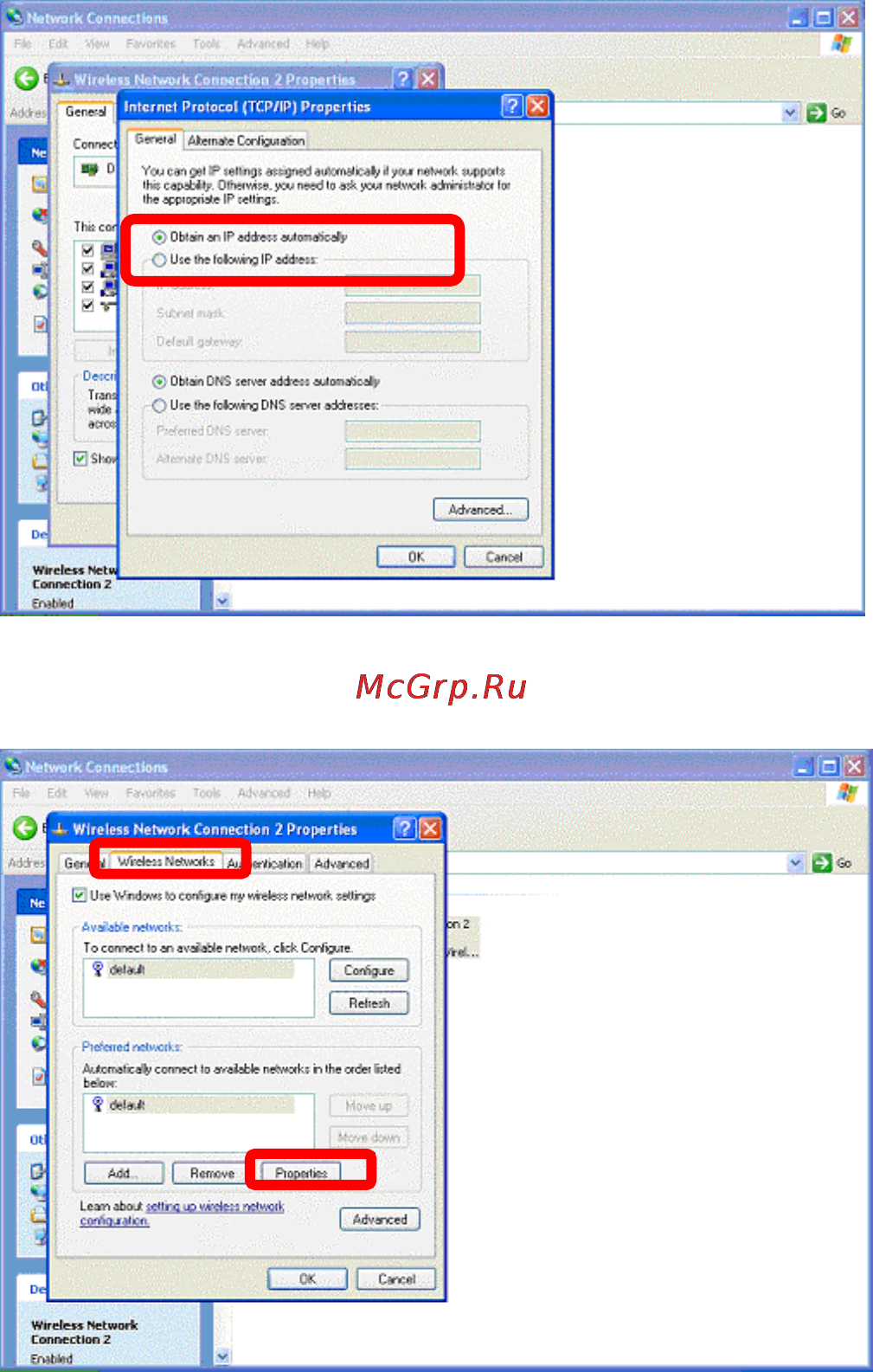

■ Select the item

"Obtain an IP

address

automatically"

■ Select the Tab

"Wireless Networks"

■ Click the " Properties

" of you Access Point.
