D-Link DRS-200 [21/69] Using the network configuration

Using the Network Configuration

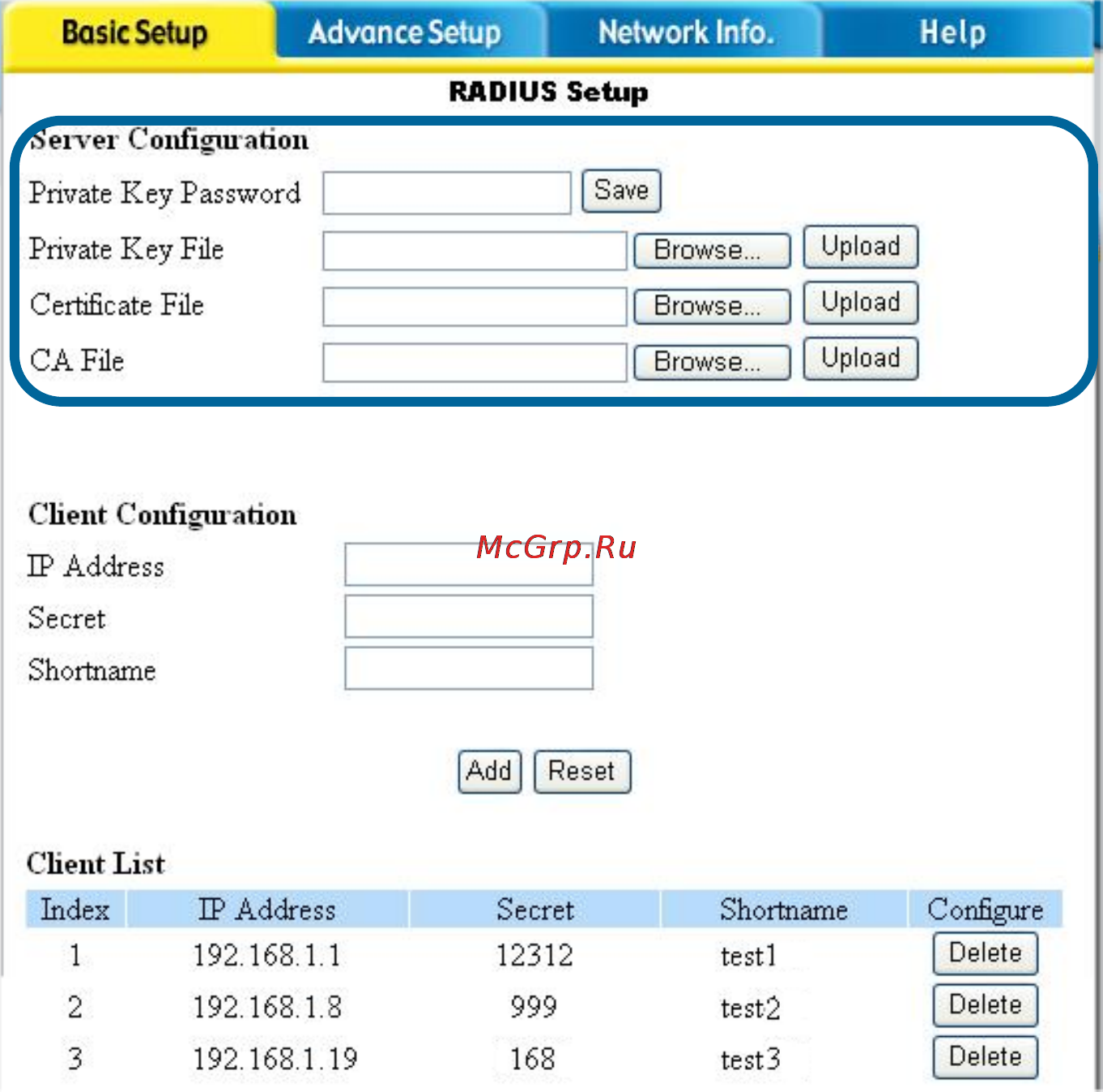

Basic Setup > Radius Setup > Server Configuration

When administrator uses the TLS type, you can use "Open SSL" to release related data,

and upload these data to DRS-200 configuration for authentication.

Private Key Password- Please use the password that was released when you used

Open SSL to make authentication files.
