Using the Network Configuration

Advance Setup > SNMP

This section is only useful if you have SNMP (Simple Network Management Protocol)

software on your PC. If you have SNMP software, you can use a standard MIB II format

with the DRS-200.

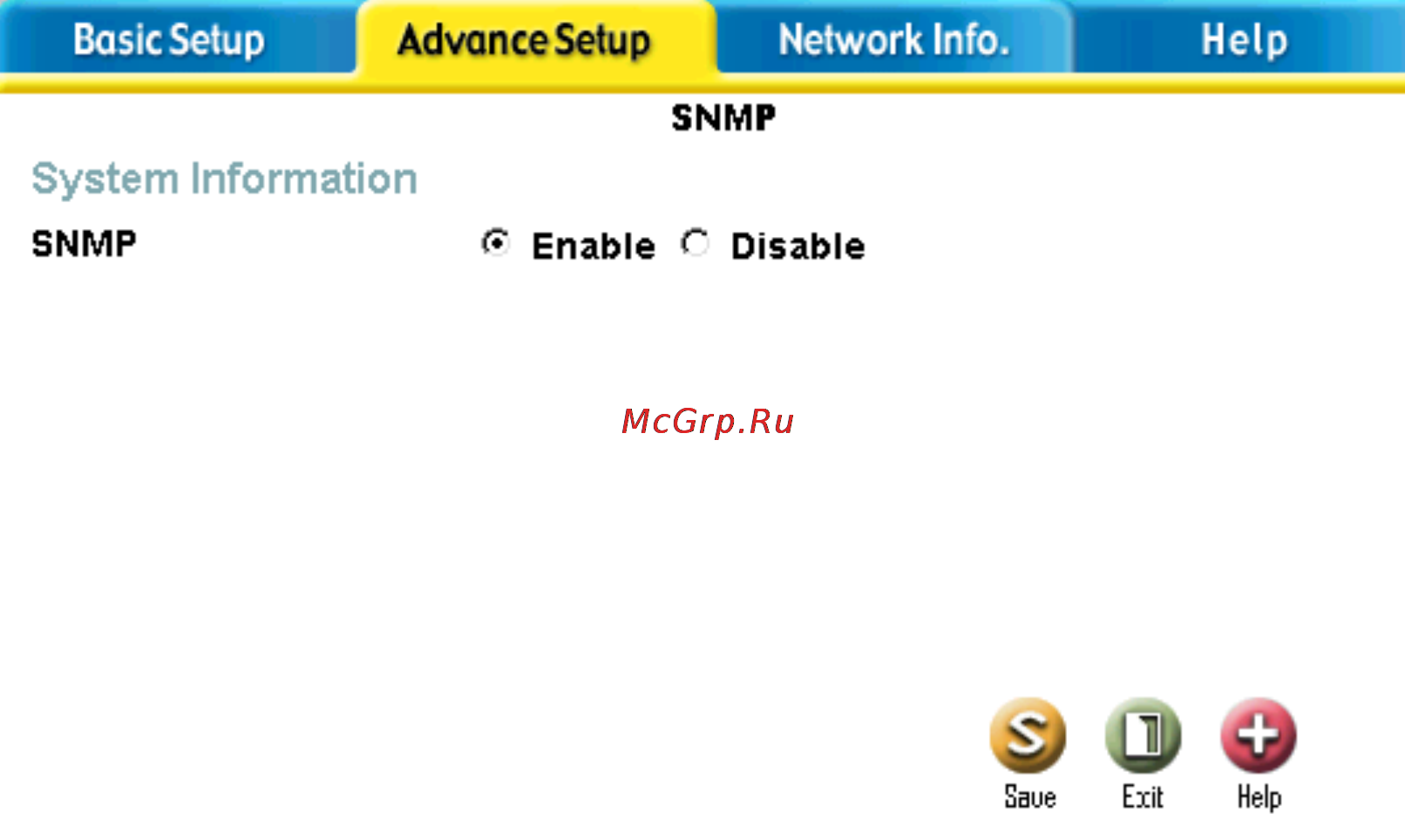

SNMP Enable- Clicking here can activate the SNMP function.

SNMP Disable- Clicking here can close the SNMP function.

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
