D-Link DRS-200 [15/69] Using the network configuration

♦ Help

If you have any problem while operating or configuring, please click this

button to request more online user guide.

♦ Save Data & Logout

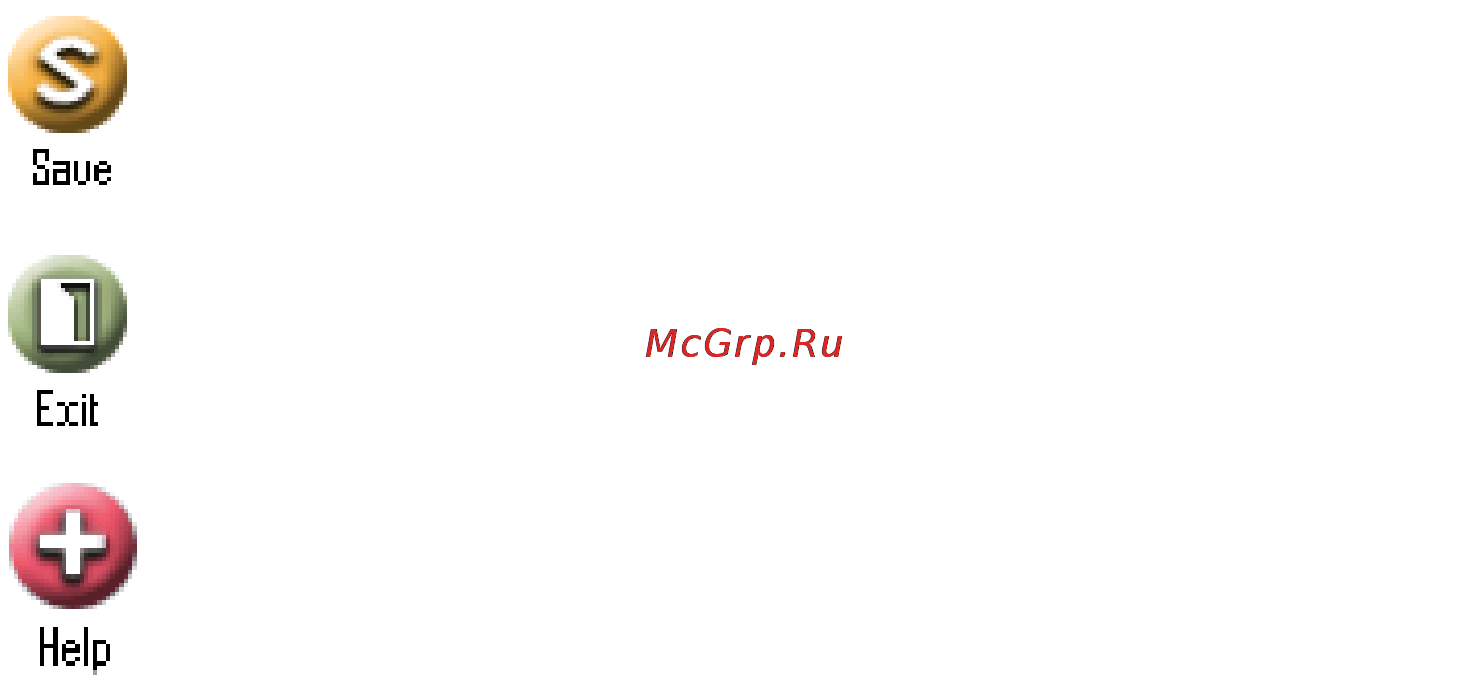

There're 3 tabs on the right below of the main page. You could use these buttons to

save data, to logout DRS-200's configuration or to request Online Help.

Using the Network Configuration

When you changed configurations in each item, you have to use "Save"

button to save new configurations

After saving and activating DRS-200, you can click the "Logout" button

or close the window to leave the DRS-200 management interface.

If you have any problem while operating or configuring, please click this

button to request more online user guide.
