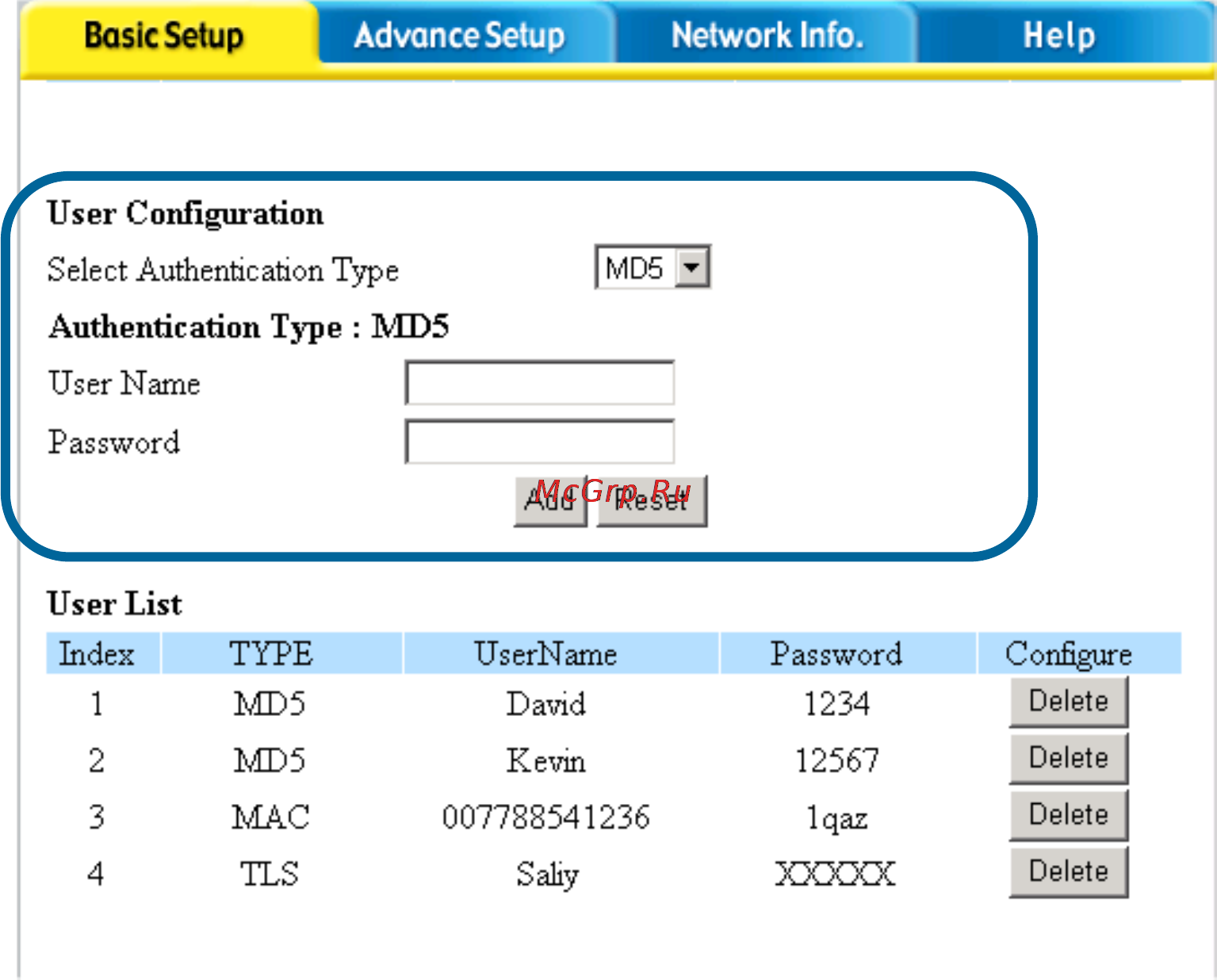

Using the Network Configuration

Basic Setup > Radius Setup > User Configuration

In this item, you have three choices of authentication type, these types are MD5, MAC

and TLS, and each type can provides the data of authentication users. DRS-200 can

save up to 100 records of user authentication data

Type- Select

Authentication-

Please click here to choose an authentication type.
