D-Link DRS-200 [40/69] Setup authentication in client

Setup Authentication in client

Setup MD5 authentication in client

In Windows XP Operating System, it's available for MD5 authentication in

the item "Control Panel". You can carry out the certificate by following steps.

■ Go to Start Click Start (in the lower left corner of the screen)

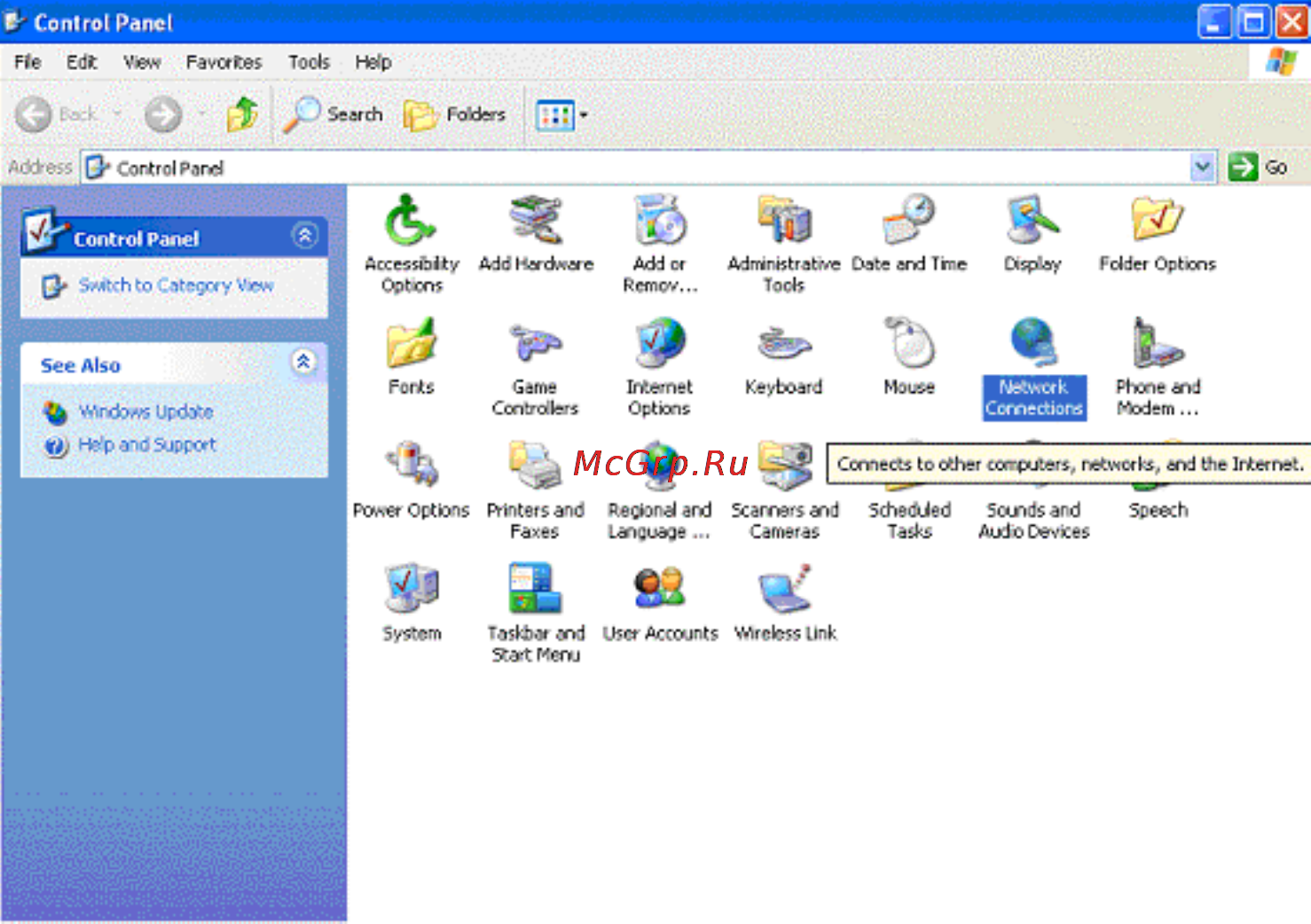

■ Select Control Panel and click

■ After open, select Network Connections and click
