D-Link DRS-200 [44/69] Setup authentication in client setup md5 authentication in client

Setup Authentication in client

Setup MD5 authentication in client

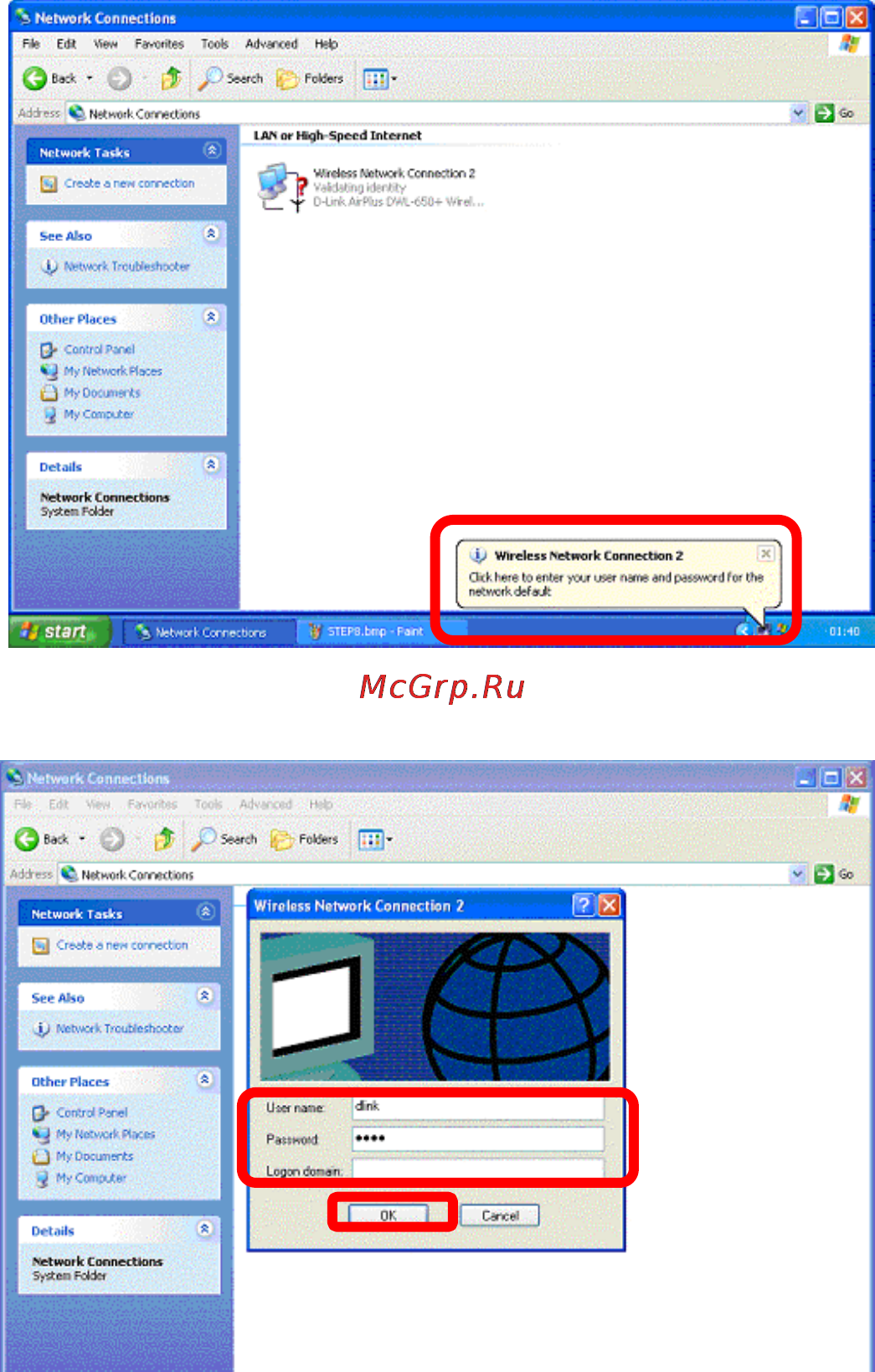

■ Click the yellow, right

blow message frame

and wait for further

authenticating.

■ Enter a "User

Name" and

corresponding

"Password"

■ Click “OK” Button
