D-Link DRS-200 [38/69] Using the network configuration

Using the Network Configuration

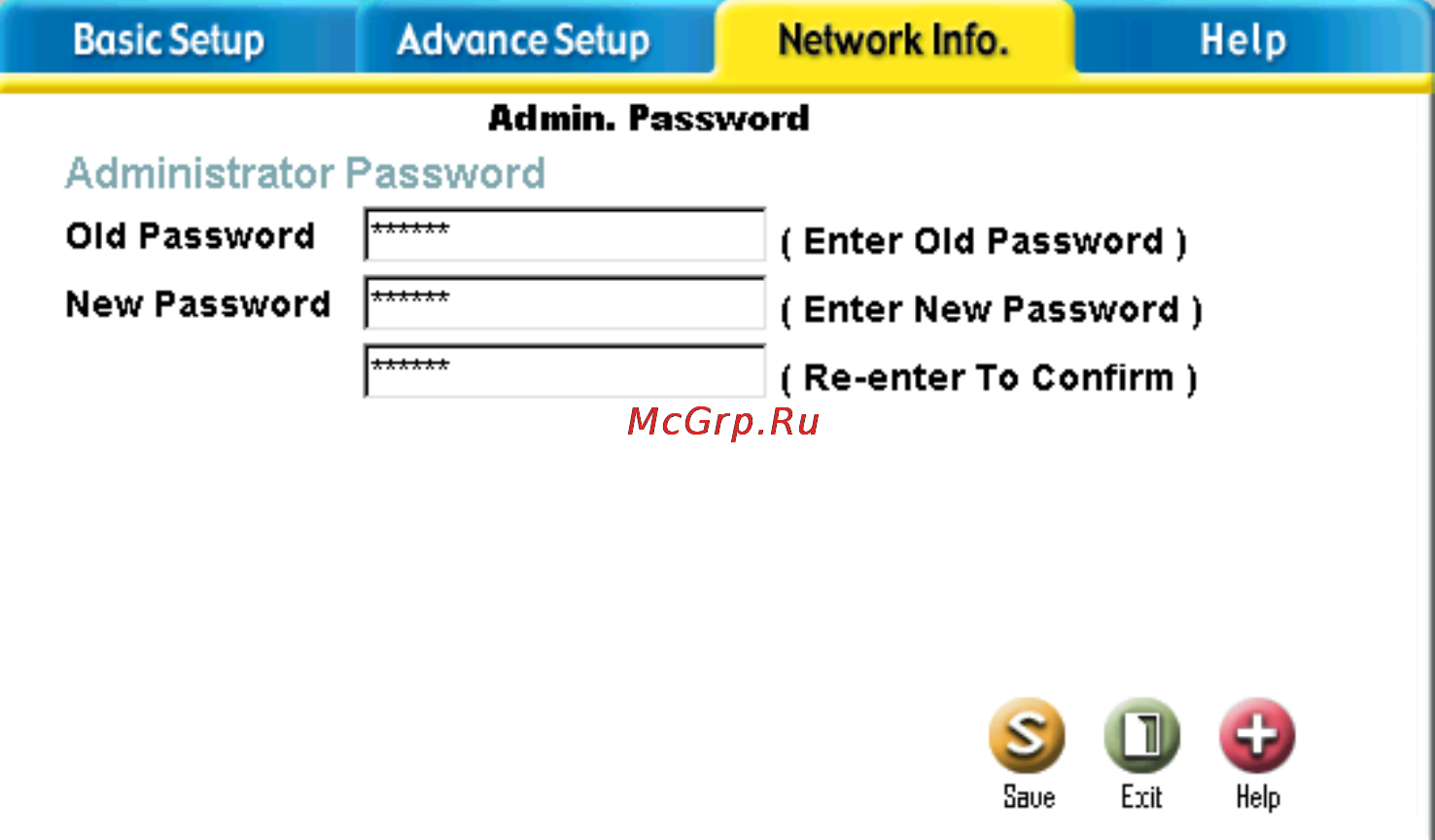

Network Info. > Admin. Password

Old Password- If you want to change the admin password, please enter the

password you set before. If you have not ever change the

default password, don’t need to input the Password in here.

New Password- After enter the old password in above column, please enter

the new password in this column. Then re-enter it again to

confirm the password is correct.

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
