D-Link DRS-200 [55/69] Setup authentication in client setup tls authentication in client

Setup Authentication in client

Setup TLS authentication in client

Now, you can setup the TLS Authentication.

■ Go to Start Click Start (in the lower left corner of the screen)

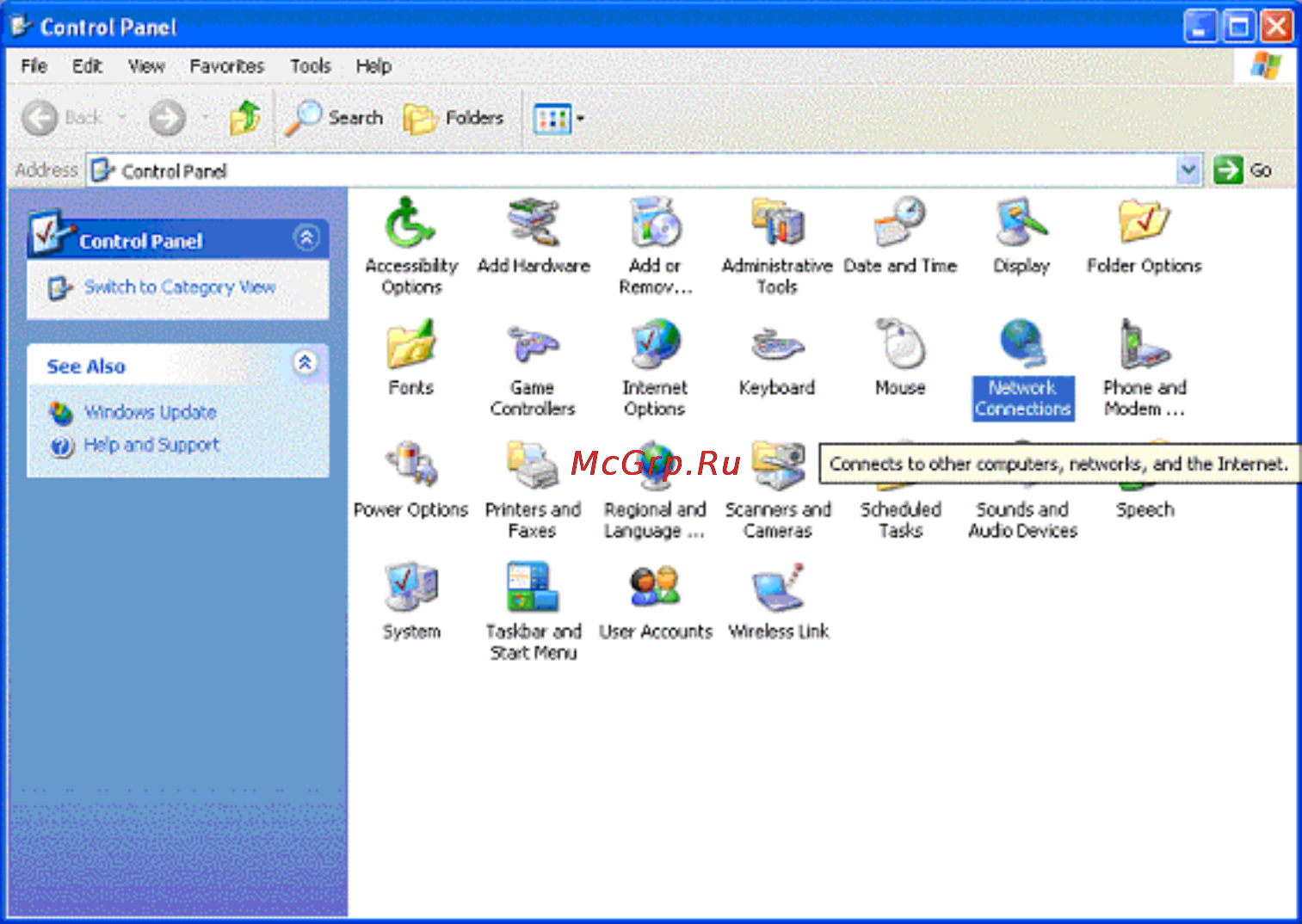

■ Select Control Panel and click

■ After open, select Network Connections and click
