D-Link DRS-200 [41/69] Setup authentication in client setup md5 authentication in client

Setup Authentication in client

Setup MD5 authentication in client

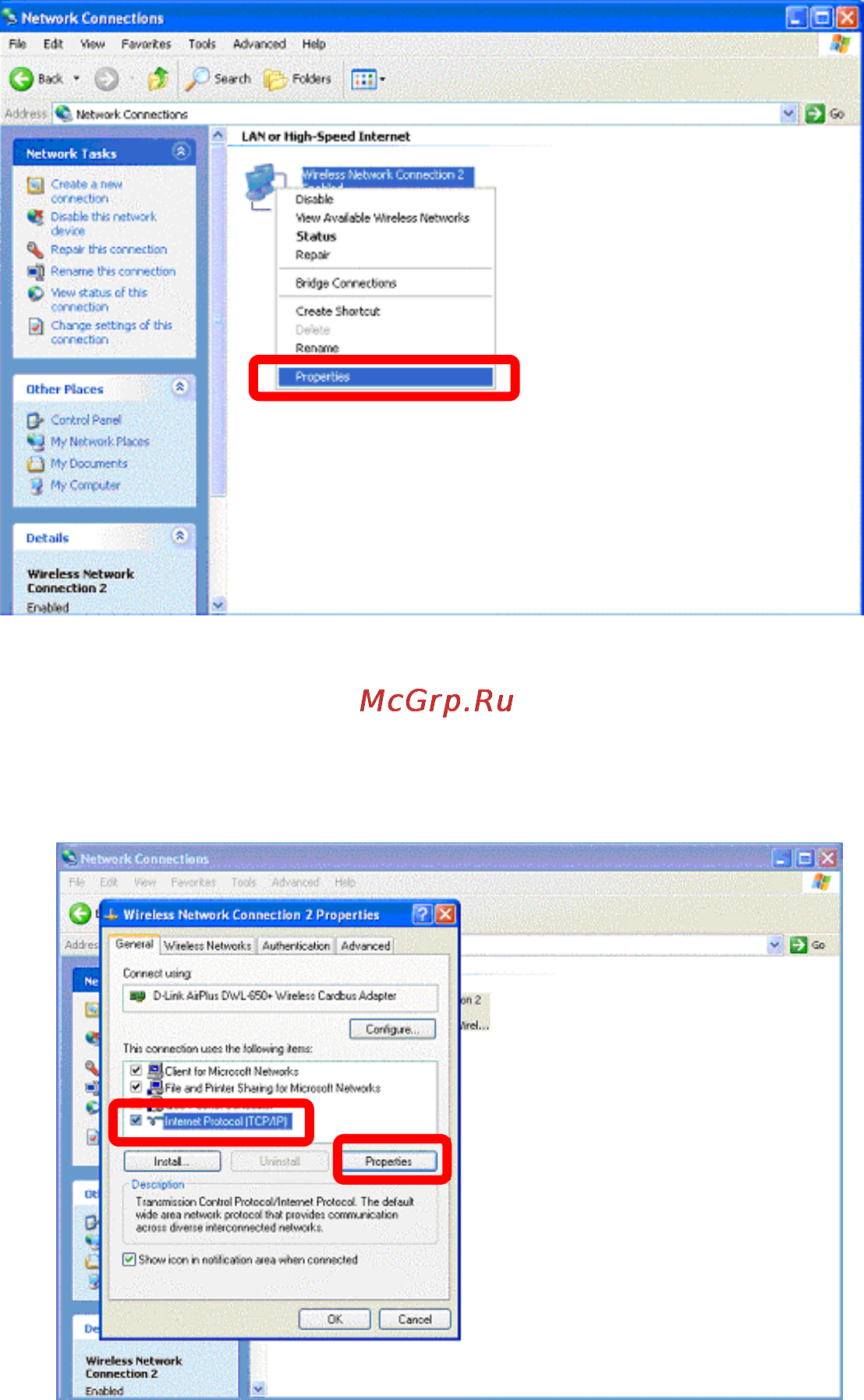

■ Select

"Properties" on

“Wireless Network

Connection” Icon.

■ When the dialogue window "Wireless Network Connection Properties"

pops up

■ Choose "Internet

Protocol (TCP/IP)

■ Click "Properties"
