D-Link DRS-200 [60/69] Setup authentication in client setup tls authentication in client

Setup Authentication in client

Setup TLS authentication in client

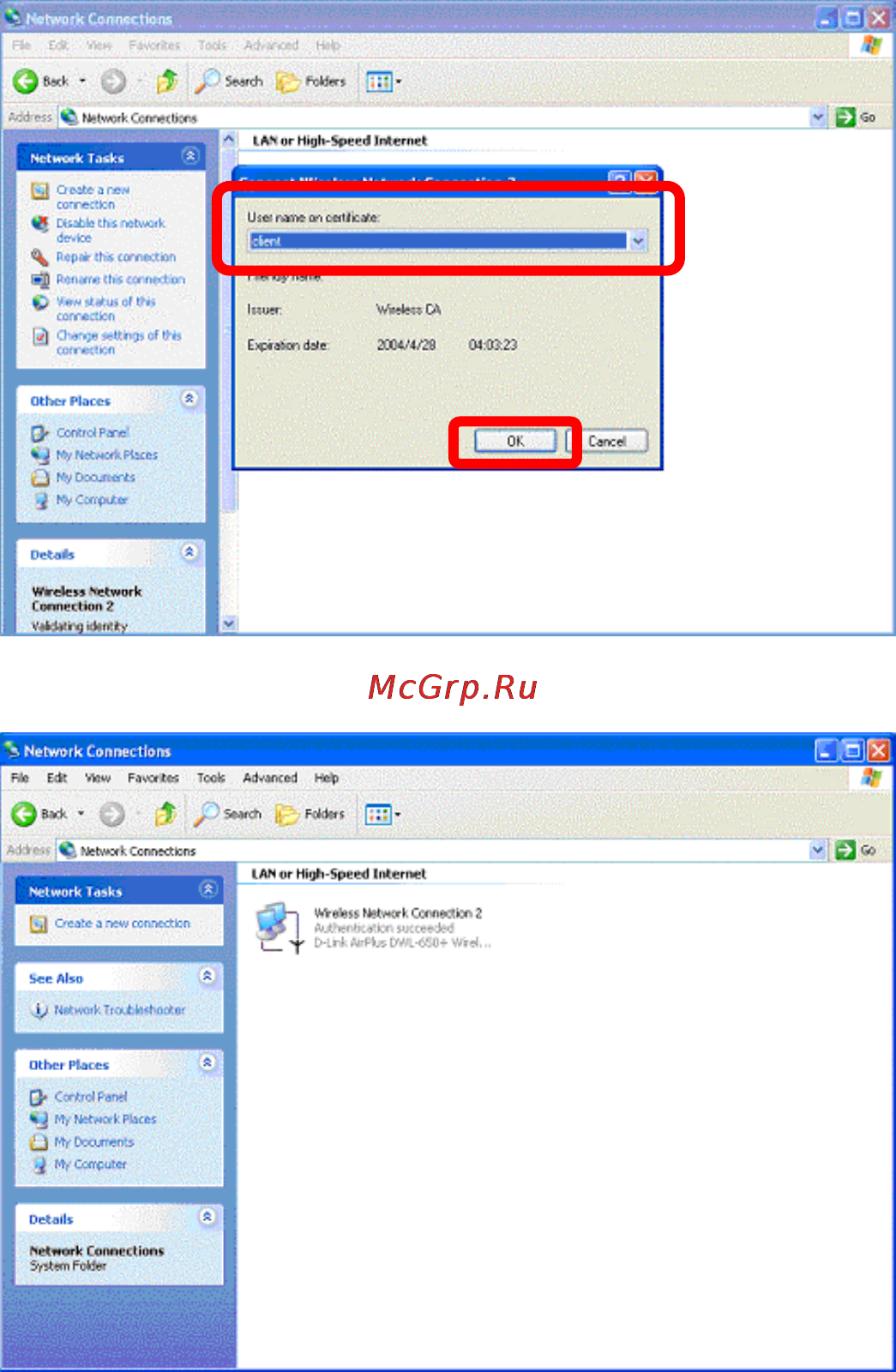

■ Select the correct target

for certificating. This case

is an authentication for

Client, so "client" is

supposed to be selected.

■ Click “OK”

■ The Authentication was

completed.
