D-Link DRS-200 [31/69] Using the network configuration

Using the Network Configuration

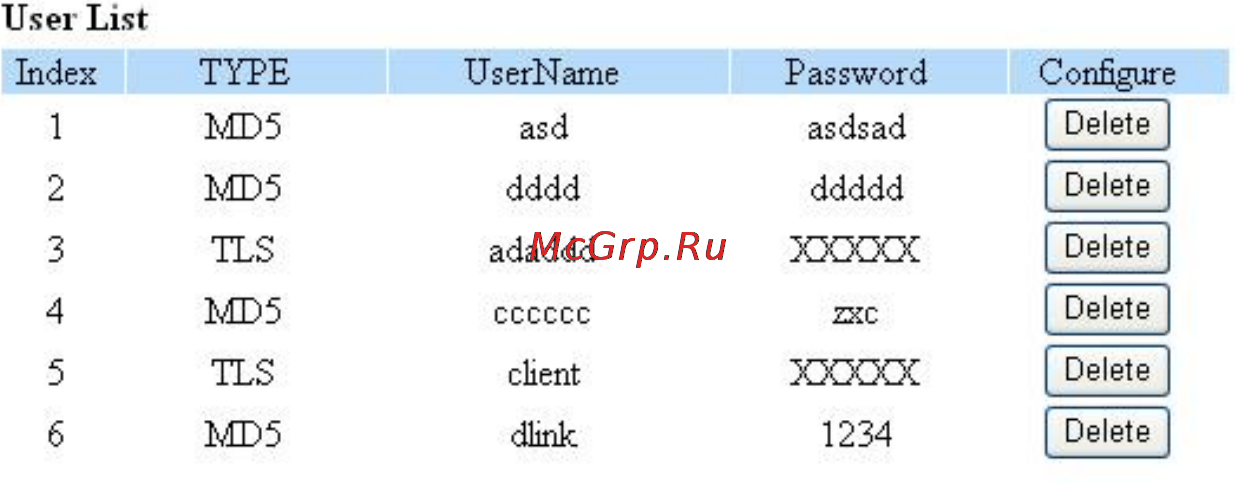

Basic Setup > Radius Setup > User List

User List- User List will show user name and password of every

authentication type.（You don't have to setup password in TLS

type）. Administrator can delete a user data in Configure by

clicking "Delete".

NOTE

：

After you entered above essential data in this page/item, you have to click the "Save"

button on right below of the screen.
