D-Link DRS-200 [58/69] Setup authentication in client setup tls authentication in client

Setup Authentication in client

Setup TLS authentication in client

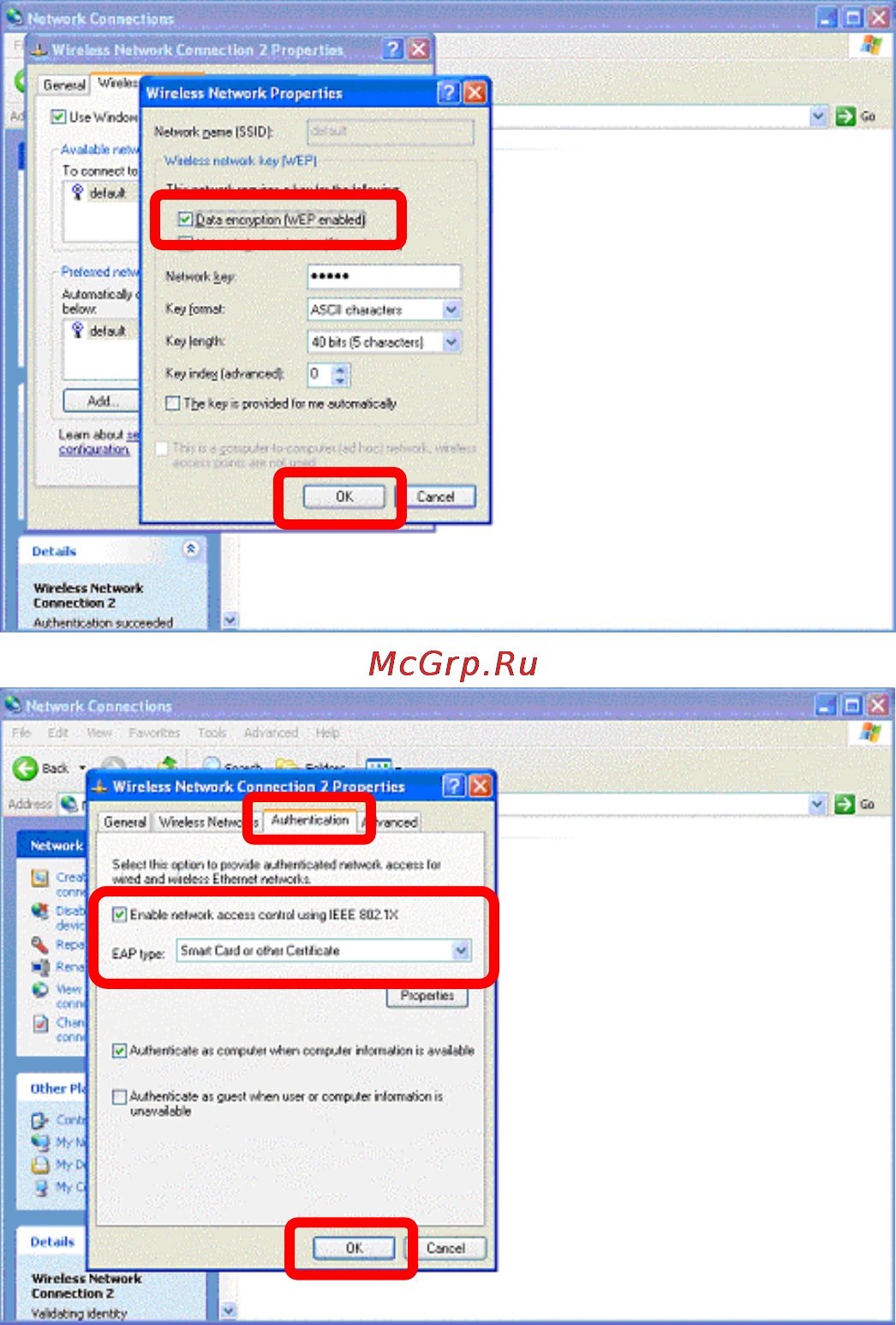

■ In the Properties,

you have to choose

the "Data

encryption" and

enter a KEY in WEP

mode.

■ Click “OK” Button

■ Select the Tab

"Authentication"

■ Choose "Enable

network access

control using IEEE

802.1x"

■ Select " Smart Card

or other Certificate

" in EAP type

■ Click “OK”
