D-Link DRS-200 [43/69] Setup authentication in client setup md5 authentication in client

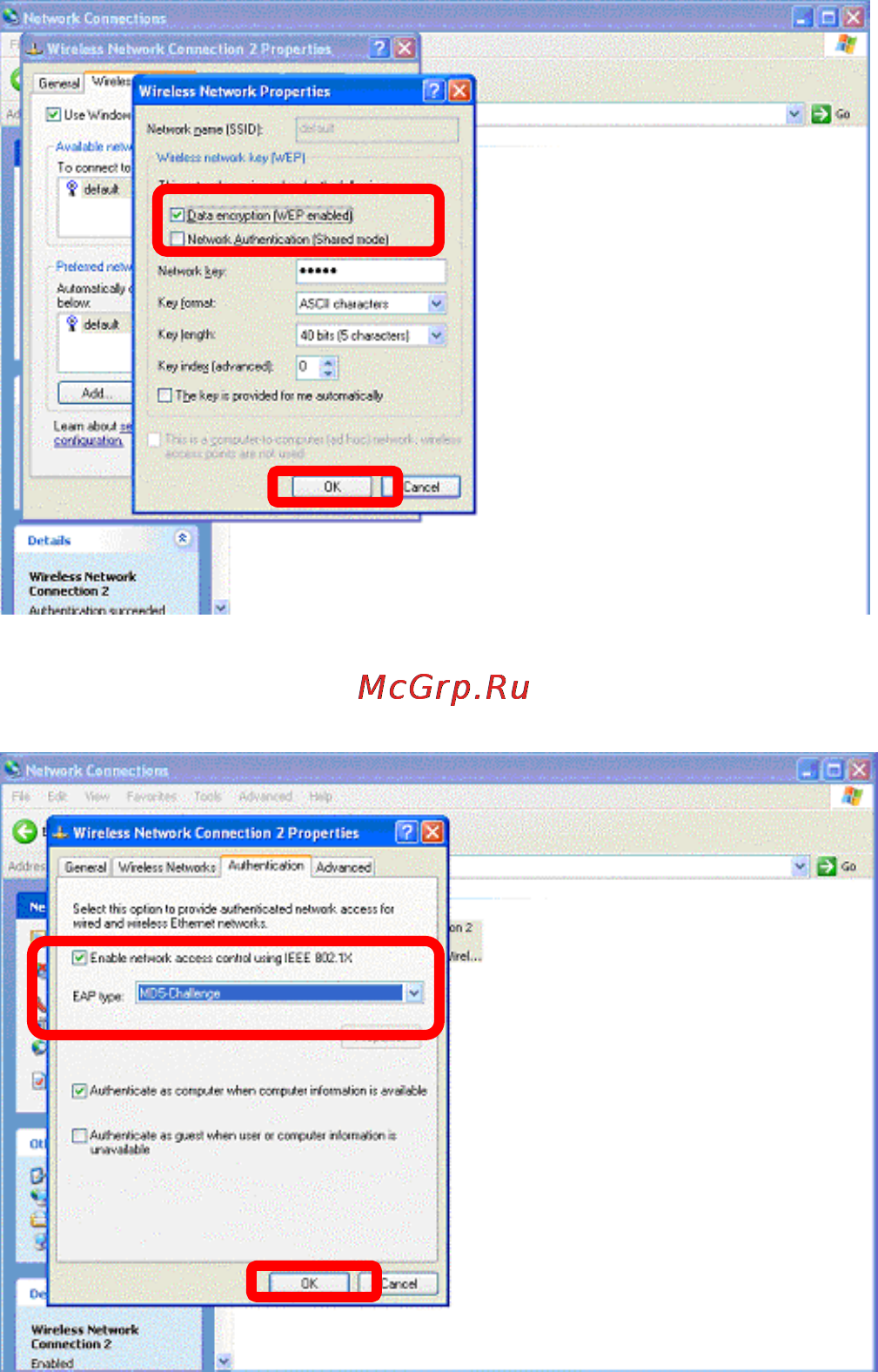

Setup Authentication in client

Setup MD5 authentication in client

■ In the Properties,

you have to choose the

"Data encryption"

■ Enter a KEY in WEP

mode.

■ Click “OK” Button

■ Select the Tab

"Authentication",

please choose

"Enable network

access control using

IEEE 802.1x"

■ Select "MD5 Challenge"

in EAP type.

■ Click “OK” Button
