15
Using the Network Configuration
Basic Setup > Primary Setup

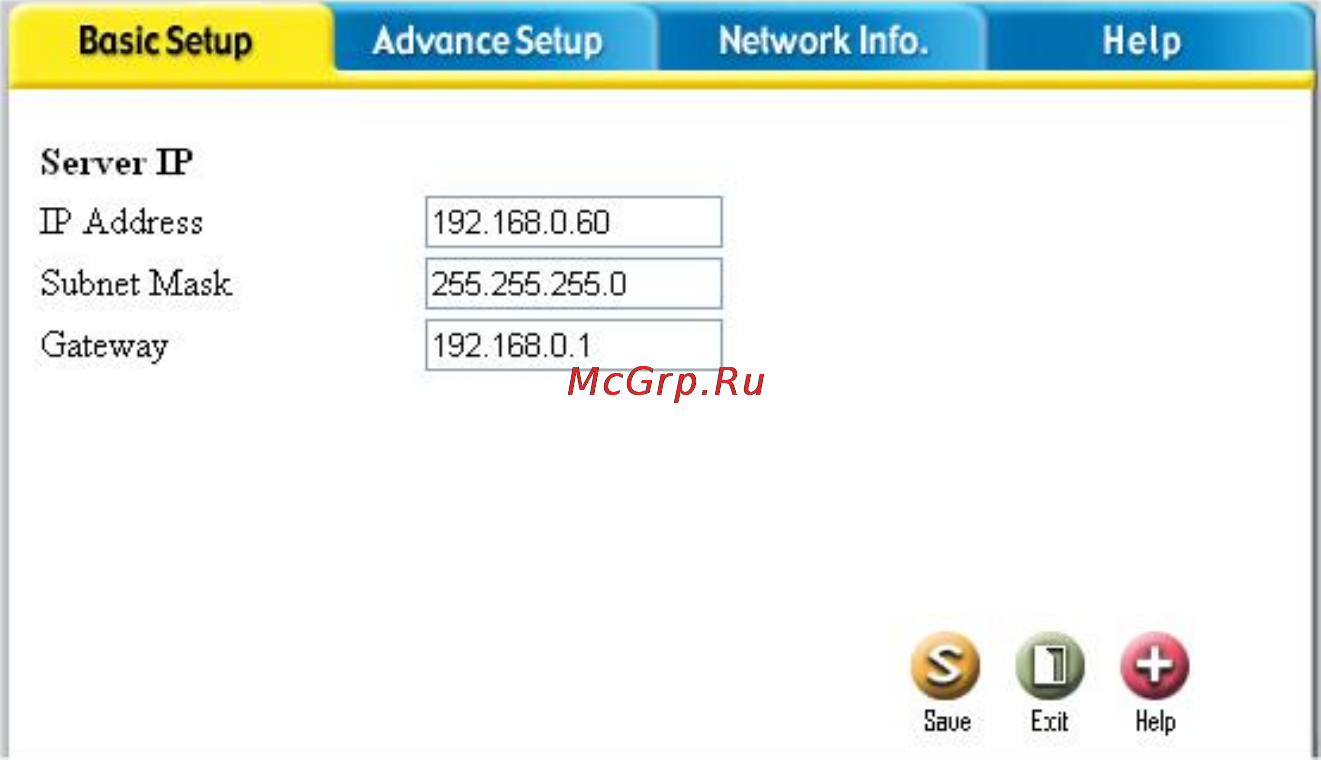

When you click the " Primary Setup" tab, you'll see the " Basic Setup " menu. This item
can let you set up the different IP Address and Subnet Mask of DRS-200 in your internal
network/LAN, and makes DRS-200 a Gateway for other PCs connecting to the Internet.
IP Address- There's a default IP "196.168.0.60" in the "IP Address" column. You can
enter an unused IP Address within the range used by one segment of
your LAN. It will be the LAN IP of DRS 200. Please click "Save" button
after you entered a new IP. At the same time, you have to change the
Class C of your administrator's PC IP as same as DRS-200.
Subnet Mask- For example, the value "255.255.255.0" is standard for small (class "C")
network. For other network, use the Subnet Mask for the LAN segment
to which the DRS-200 is attached (the same value as the PCs on that
LAN segment).
