D-Link DRS-200 [63/69] Default settings

Resetting the DRS-200 to the Factory

Default Settings

After you have tried other methods for troubleshooting your network, you may

choose to Reset the DRS-200 to the factory default settings.

To hard-reset the D-Link DRS-200 to the Factory Default Settings, please do

the following:

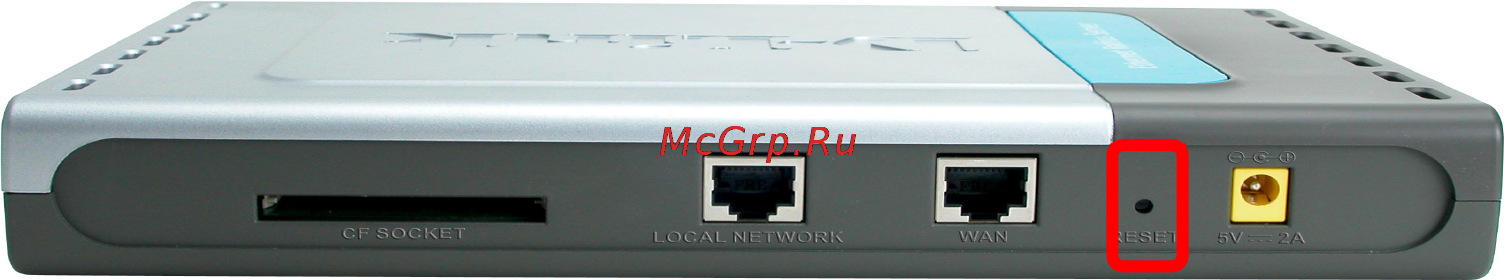

 Locate the Reset button on the back of the DRS-200

 Use a paper clip to press the Reset button

 Hold for about 3 seconds (don’t hold too long) and then release.

 After you have completed the above steps, the DRS-200 will be reset to the

factory default settings and you can re-login.
