D-Link DRS-200 [56/69] Setup authentication in client setup tls authentication in client

Setup Authentication in client

Setup TLS authentication in client

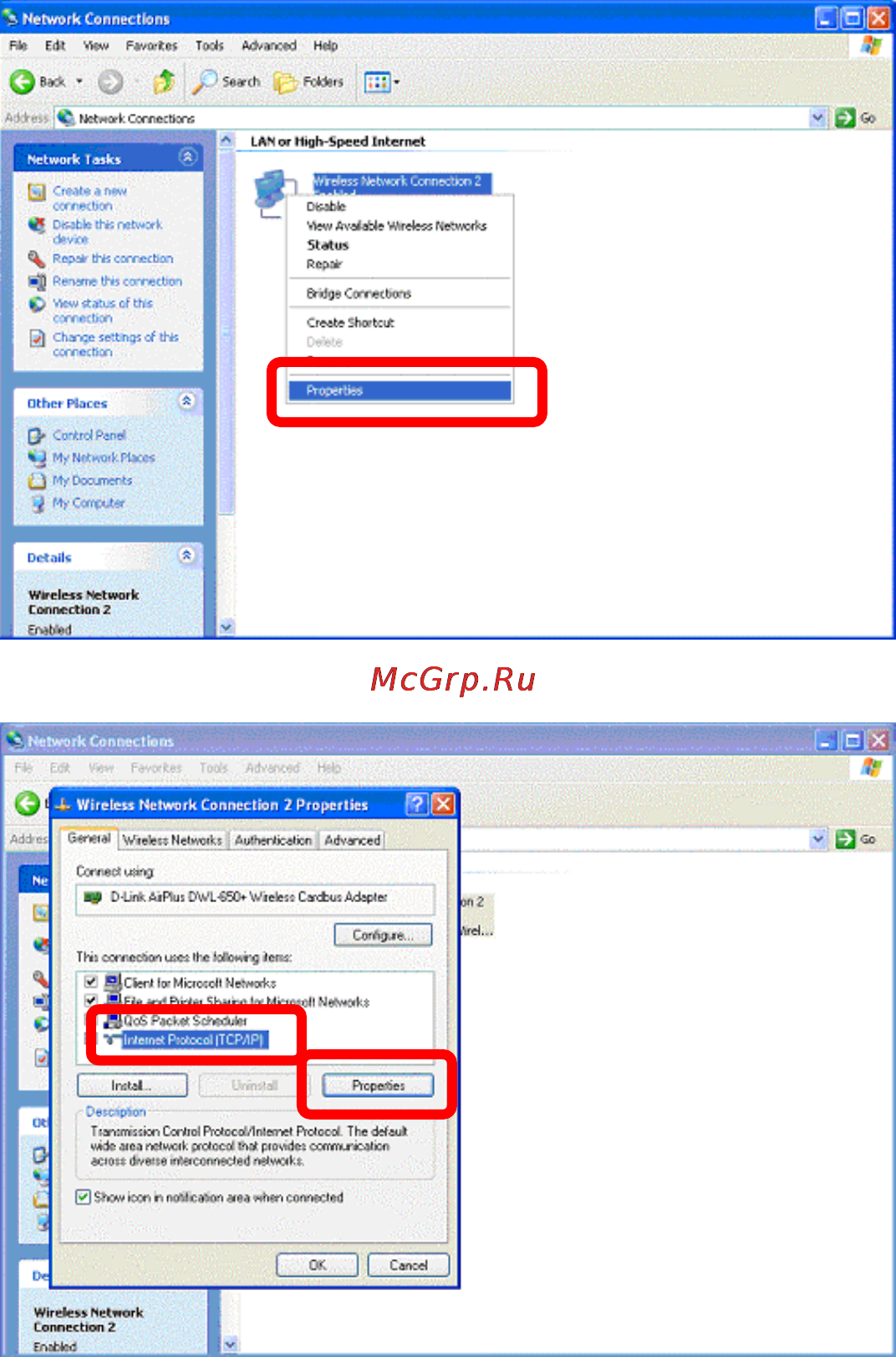

■ Select "Properties"

on “Wireless

Network

Connection” Icon.

■ When the dialogue

window "Wireless

Network

Connection

Properties" pops

■ Choose "Internet

Protocol

(TCP/IP)"

■ Click "Properties"
