D-Link DRS-200 [59/69] Setup authentication in client setup tls authentication in client

Setup Authentication in client

Setup TLS authentication in client

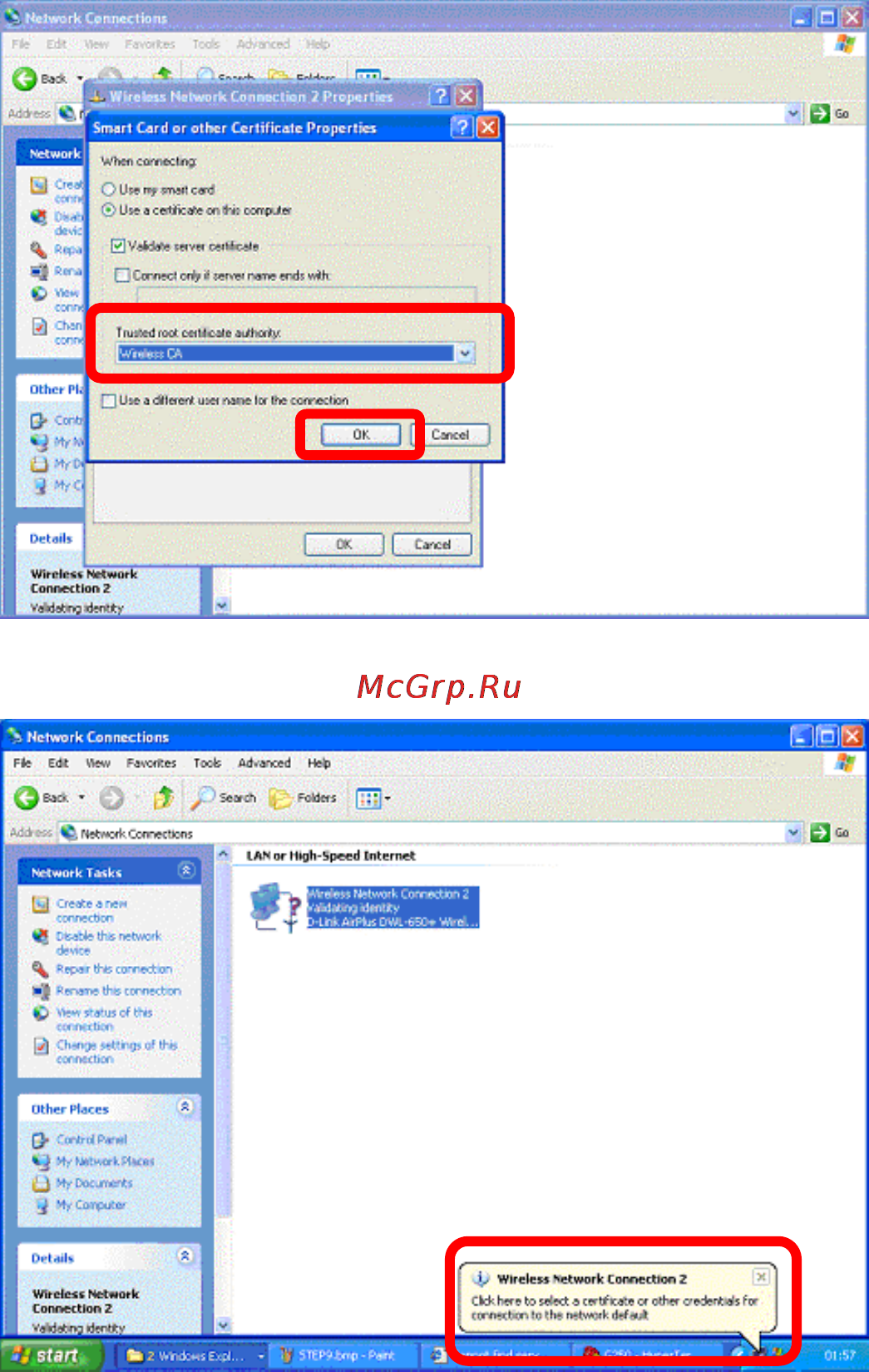

■ Choose "Trusted root

certificate authority"

item and select Wireless

CA.

■ Click “OK”

■ Click the yellow, right

blow message frame

and wait for further

authenticating
